Cylinder Kit 70ccm AC air cooled for Morini engines, Suzuki Katana, Pegasus, TGB Sky, Corona
Prices incl. VAT plus shipping costs
Unfortunately, this item is already sold out due to high demand.
- Item no: 162075
- EAN: 4251048811639
- Manufacturer: Citomerx
- Manufacturer no.: 162075
Citomerx Cylinder Kit 70cc AC
DESCRIPTION:
Power comes from fuel and for more fuel you need more displacement.

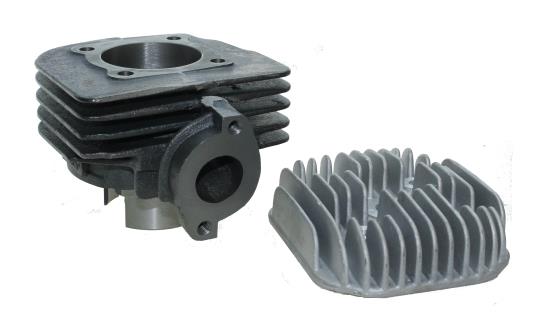

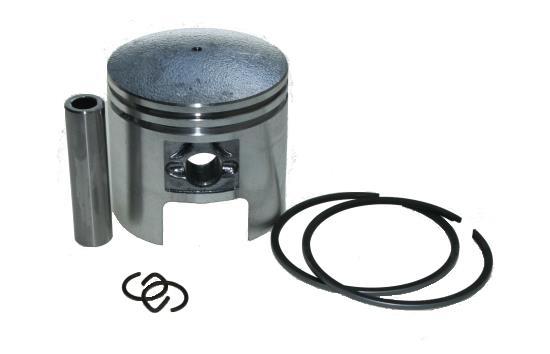

With this cylinder kit for all Morini AC engines with original 50ccm, you give the engine the necessary clearance to be able to produce a good 9 hp with adjusted settings. The cast iron cylinder with the enlarged bore of 47.6 mm increases the combustion chamber to 70 cc. The specially developed cylinder head optimises the flow and the ignition point. The high-quality piston is perfectly adapted to its environment and reliably transmits the new power to your crankshaft.
The combination of these components ensures great performance in outstanding quality at a low price.
TECHNICAL DATA:
- Type: 70cc cylinder kit
- Colour: grey
- Material: grey cast iron
- Bore: 47.6 mm
- Diameter piston pin: 10 mm
SCOPE OF DELIVERY:

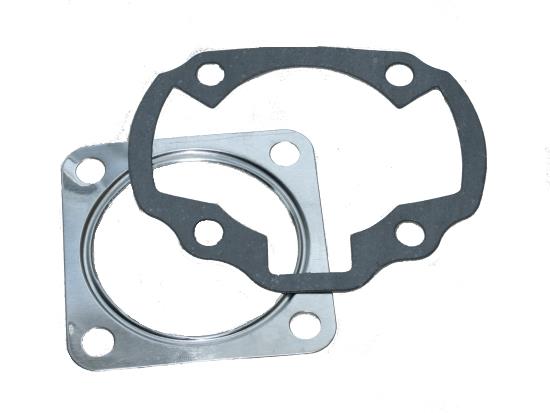

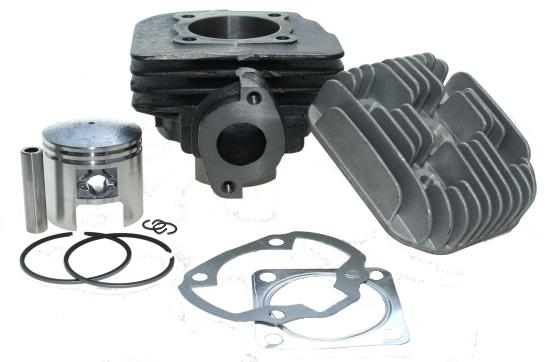

Cylinder, gasket set, piston set, cylinder head
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 100 x 90 x 35 mm |
| Piston pin diameter: | 10 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Nein |
| Cylinder head stud bolt spacing: | 46 x 46 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Cylinder head stud diameter: | 7 mm |
| Surface finish: | Matt |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4251048811639 |
| Diffuser internal dimension: | 25 mm |
| Note: | Zylinderkopf beachten! Es gibt 2 Versionen! / Hier Version 2! |
| Cylinder dimensions (LxWxH): | 110 x 100 x 80 mm |
| Outlet Stud distance: | 46 mm |
| Scope of delivery: | Kolben Set, Cylinder head, Cylinder, Gasket set |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 46 x 46 mm |
| Number of overflows: | 5 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 162075 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head cylinder set |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| Suitable for: | Morini AC |
ZS 2Radteile GmbH
Unterbibracherstr. 3
95519 Vorbach
Web page https://www.citomerx.de
Email: info@zweiradteile.net
Citomerx stands for quality, precision, and performance for motorcycles, scooters, mopeds, and quads. As a renowned manufacturer, Citomerx offers a broad range of parts and accessories designed for both DIY enthusiasts and professional workshops. With cutting-edge manufacturing technology, strict quality controls, and innovative design, Citomerx sets new standards for durability and performance.
From cylinder kits and variator weights to exhaust systems and brake components, Citomerx reliably delivers solutions that meet the highest demands. Known for precise fit and excellent value for money, Citomerx parts are the first choice for maintaining and enhancing two-wheelers.
Citomerx understands the needs of riders and offers products engineered for maximum durability and efficiency. Constantly evolving to keep pace with market trends and technological advances, Citomerx is a trusted name for those who value performance, safety, and modern design.
Choose Citomerx – for uncompromised riding pleasure and reliable technology.
schlecht
Schlecht verarbeitet Kolben stösst nach dem Einbau am Zylinderkopf an.
Hallo Herr Richter,
das der Kolben am Zylinderkopf anstößt hat nichts mit der Verarbeitung zu tun sondern es muss die Quetschkante vom Kopf neu eingestellt werden.
Weitere Infos dazu erhalten Sie gerne auf Anfrage.
Ihr ZS 2radteile Team
