Puch X30 X50 Clutch set 3 discs + spring 2 3 speed MS VS D DS DK DZ DZS Maxi

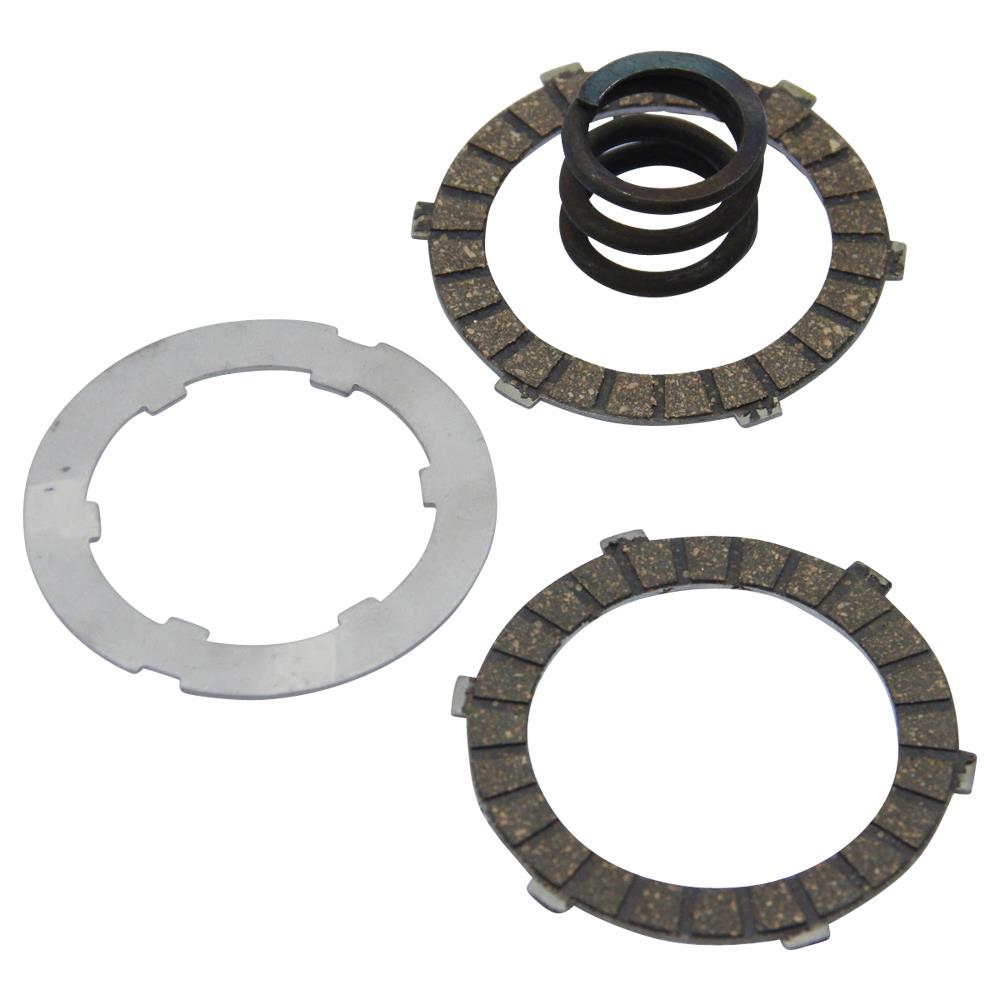

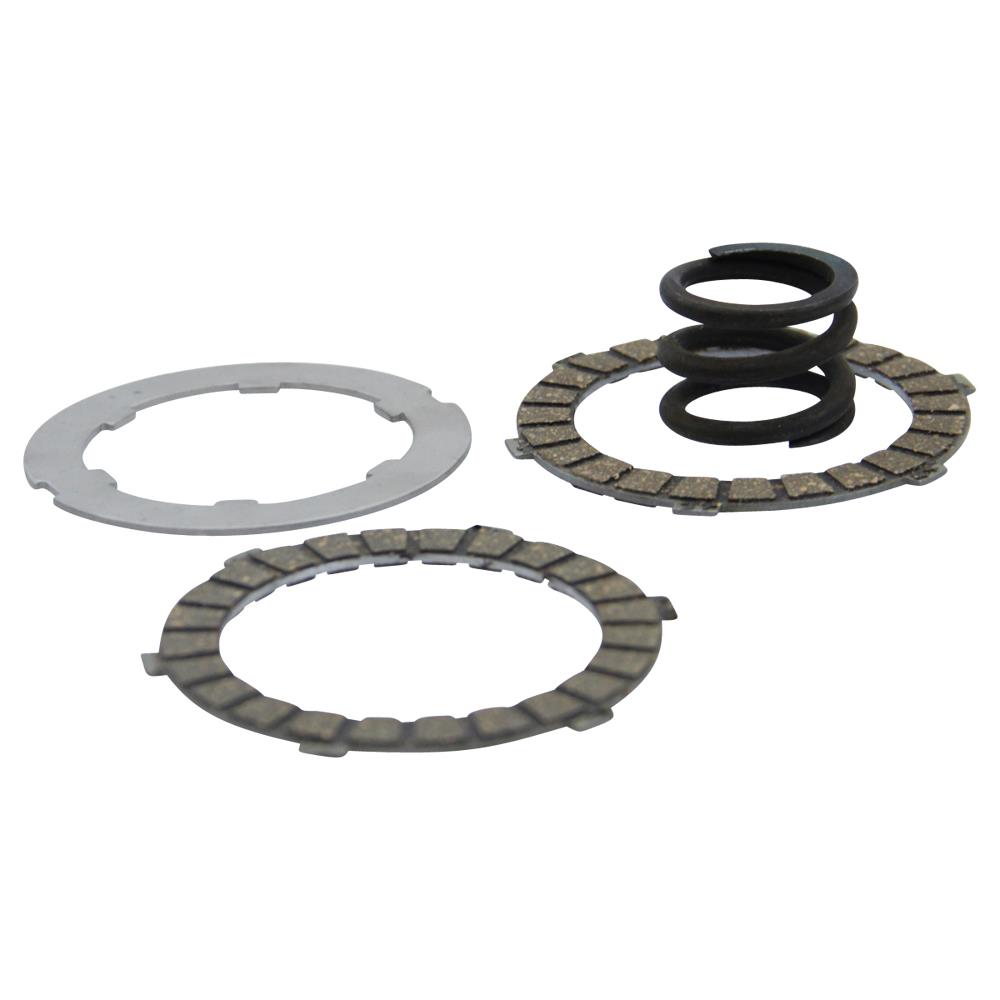

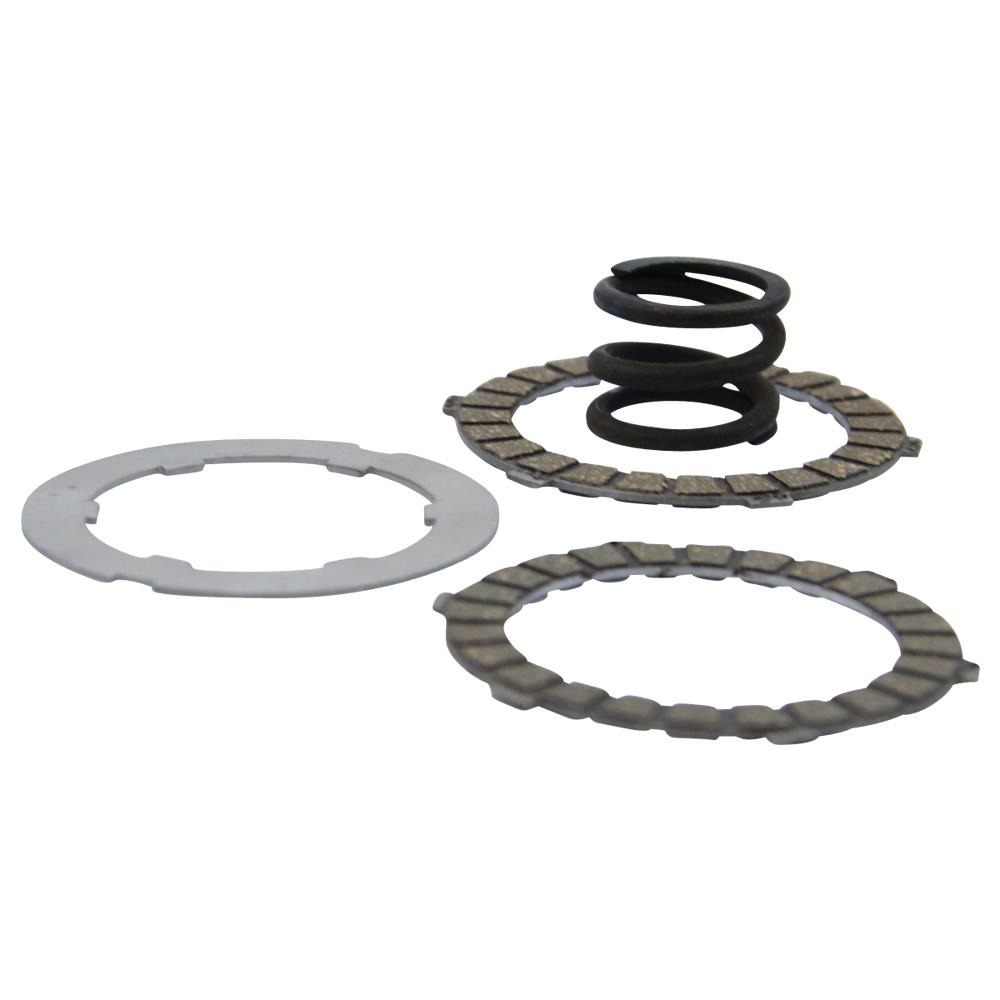

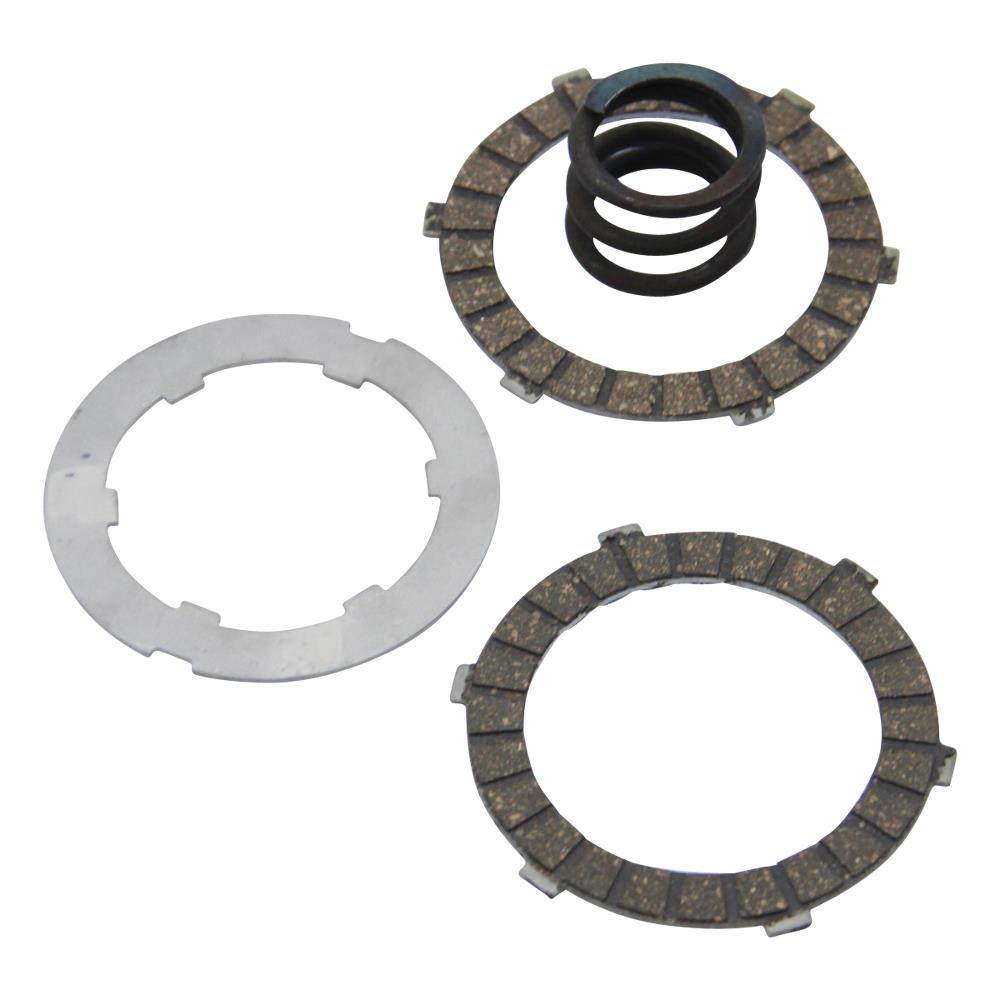

4-piece clutch set: 2x friction plate + 1x steel plate + 1x clutch pressure spring for Puch engines

DESCRIPTION:
The clutch of your moped is defective? If a defect of the clutch is announced, then you should act. With this set you can repair the problem easily and cheaply by yourself. The new pressure spring must not be more than 3mm longer than the new spring. The same applies to the steel discs and friction discs: they must not be more than 0.2mm thicker than the old discs. If the springs or clutch discs are even partially worn, the whole set must still be replaced. First the new clutch discs and pressure plate must be inserted, then the pressure springs. After successful replacement, you should drive carefully for the first few kilometres, as the clutch has to be ground in. The clutch set fits Puch MS 50, VS 50, D, DS, DK, DZ, DZS, DZ, MS 25, M 50 R, Maxi 2 speed, X 30, X 50 2 and 3 speed and others.
Attention: For the Puch M 50 SE as well as Puch Monza 4 S and 4 SL, 3 instead of 2 friction discs are required.

TECHNICAL DATA:

Friction disc
- replaces OE Puch 350.0.12.024.2
- Outer diameter without lugs 70 mm
- Diameter outside with lugs 75 mm
- Diameter inside 51 mm
- thickness 2,8 mm

Steel lamella
- replaces OE Puch 050.1212
- Outside diameter 70 mm
- Diameter inside without lugs 51 mm
- Diameter inside with lugs 46 mm
- thickness approx. 2 mm

Pressure spring:
- replaces OE Puch 050.1206
- Outside diameter 39 mm
- height approx. 22 mm
- thickness approx. 2 mm

SCOPE OF SUPPLY:
- 2x friction plate
- 1x steel lamella
- 1x clutch pressure spring
