speedometer drive speedometer worm repair kit 3-part for Zündapp

You can find spare parts for vehicle manufacturers from "A" like Aprilia to "Z" like Zündapp here!

DESCRIPTION:
Did you know that the name of the traditional Zündapp brand is made up of two separate abbreviations? Namely, Zünd- for detonator and -app for apparatus, which stands for Zünder- und Apparatebau-Gesellshaft m.b.H. The company is of course better known as Zündapp-Werke GmbH. From 1921, motorcycles were manufactured in Nuremberg.

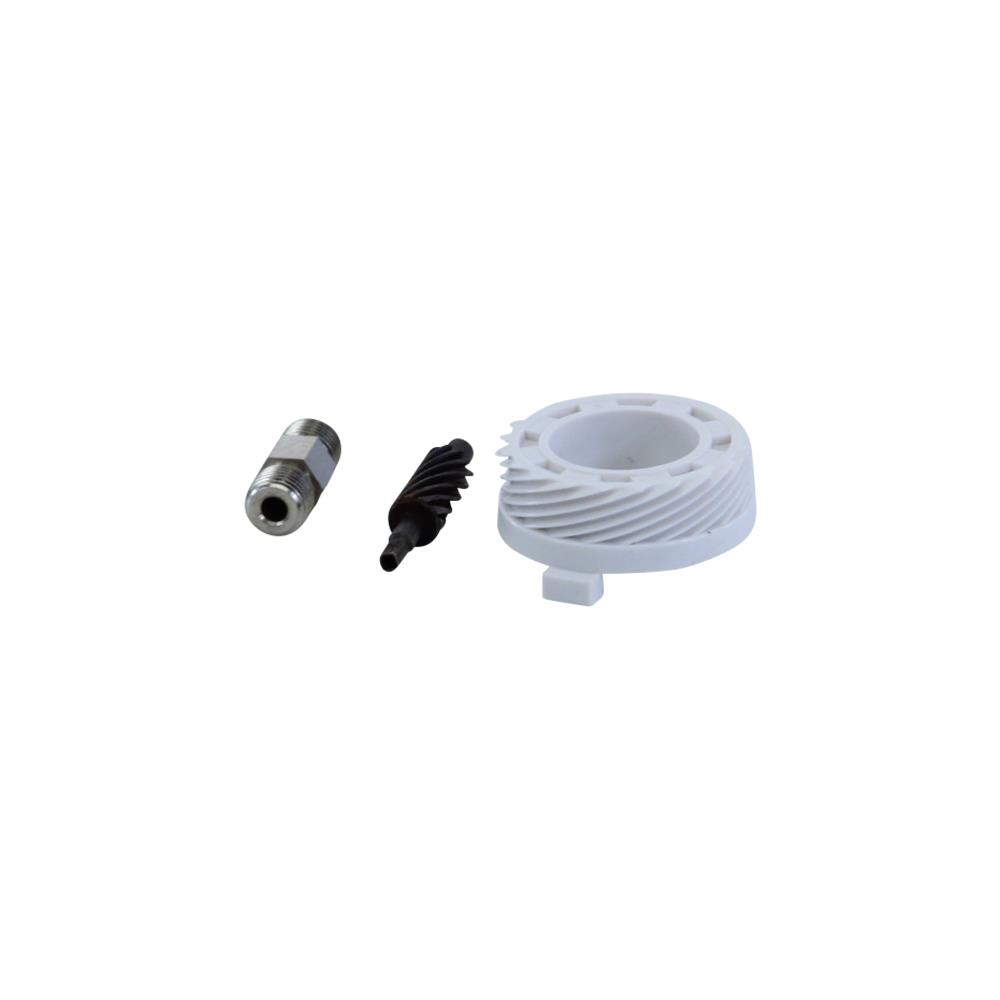

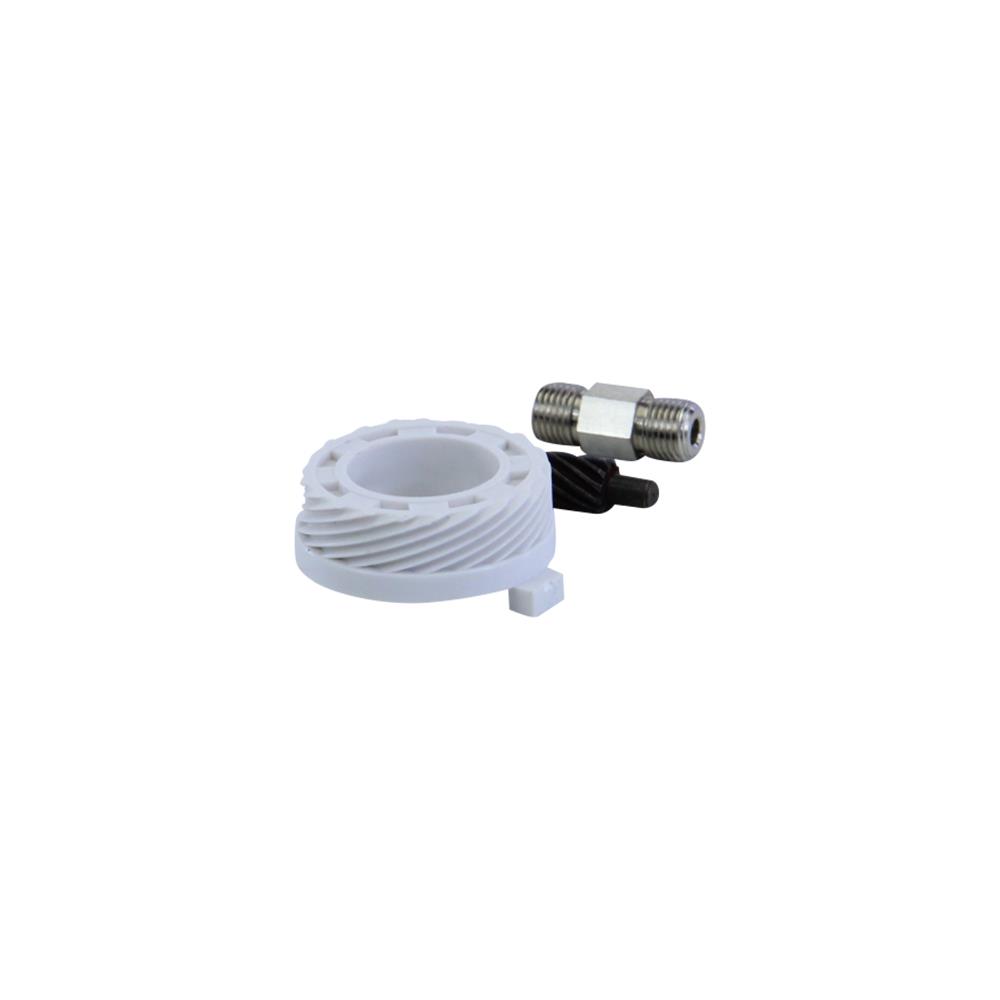

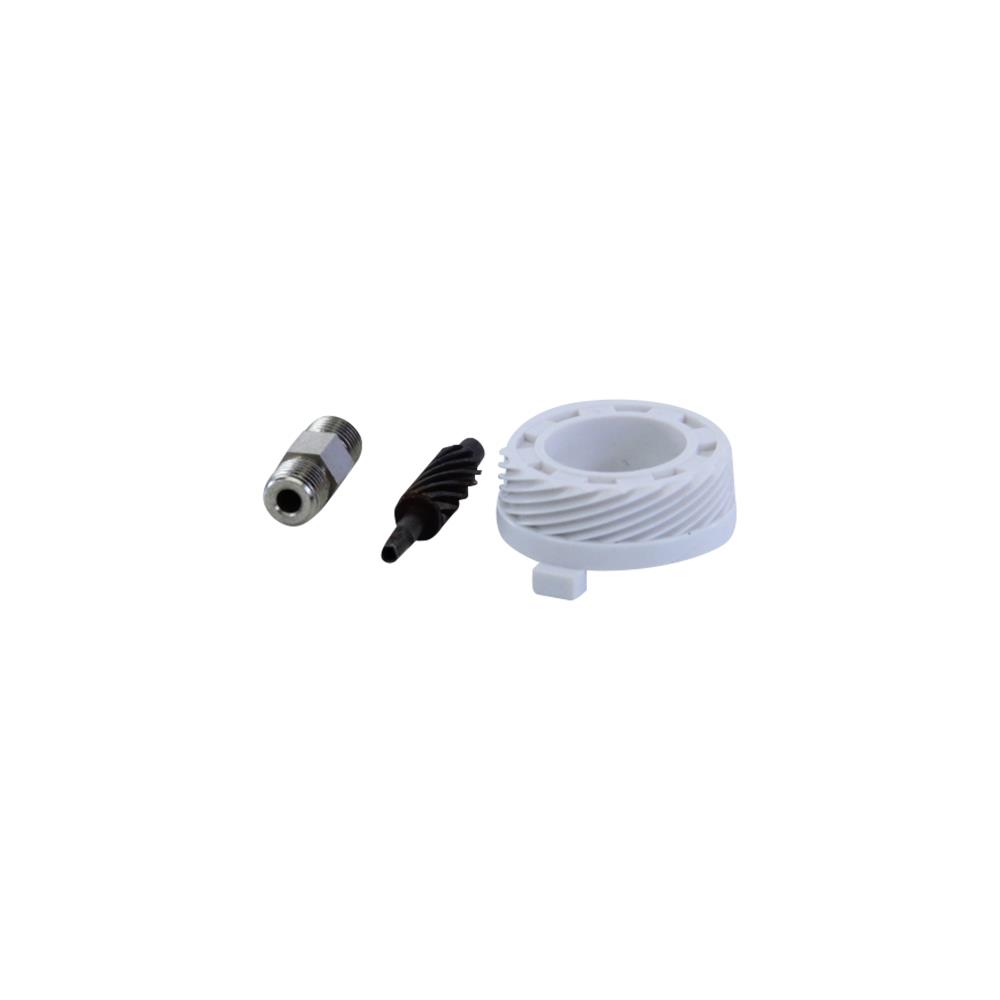

Here you will find a speedo drive repair kit for your Zündapp. The kit contains a threaded socket, a speedometer sprocket and a speedometer wheel. The speedo wheel is put directly on the axle of the front wheel and is located inside the wheel hub. The speedometer pinion is located in the brake shield and absorbs the rotation of the wheel via a helical gearing. The pinion is connected to the speedometer shaft via the threaded connection, which transmits the rotary movement to the speedometer.

TECHNICAL DATA:
- Speedometer drive for Zündapp
- Dimensions wheel holder: outer diameter 39mm, inner diameter 22.5mm, rectangular holder 4.5mm x 4.5mm x 8mm
- thread M10
- square socket speedometer cable: 3mm

SCOPE OF DELIVERY:
✔ 1x speedo drive repair kit (3-piece)
