Parmakit piston set 45mm Tol. B 70ccm (Kobo 12mm) LONG HUB for Hercules GT K MK SB Supra Sachs 50S 501 506 50/5
Prices incl. VAT plus shipping costs
Free shipping!
Delivery time on request
- Item no: 64415.02B
- EAN: 4251048883094
- Manufacturer: Parmakit
- Manufacturer no.: 64415.02B
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1961-1962 )
Hercules K 50 (1963-1964)
Hercules K 50 (1964-1965)
Hercules K 50 (1968-1970)
Hercules K 50 RX (1969-1970)
Hercules K 50 SX (1969-1970)
Hercules K 50 Sprint (1970)
Hercules K 50 Sprint (1969-1970)
Hercules K 50 Sprint (1971-1972)
Hercules K 50 Sprint (1973-1974)
Hercules K 50 Sprint (1975-1977)
Hercules RT 159 Jet (1973)
Hercules SB 1 Sport Bike (1972-1975 )
Hercules SB 5 Sport Bike (1975-1979)
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976-1977)
Hercules K 50 RL (1974-08/1976)
Hercules K 50 RL (1978-1980)
Hercules K 50 RX (1971-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)
Hercules K 50 SX (1971-1972)
Hercules K 50 Sprint (1977-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules RT 159 (1973)
Hercules MK 1 S (1977-1979)
Hercules MK 1 S (1980-1984)
Hercules MK 1 (1970-1976)
Hercules MK 2 S (09/1976- 1979)
Hercules MK 2 S (1980-1984)
Hercules MK 2 (1970-08/1976)
Hercules MK 3 M (1973-1974)
Hercules MK 3 X (1970-1972)
Hercules MK 4 M (1973-1974)
Hercules MK 4 X (1970-1972)
Hercules MK 4 (1966-1970)
Hercules MK 50 Super 4 (1966-1968)
Hercules MK 50/1 (1966-1970)
Hercules SB 2 Sport Bike (1972-1975)
Hercules SB 3 Sport Bike (1975-1984)< br />Hercules Supra 4 Enduro (1979-1980)
Hercules Supra 4 GP (1979-1980)
Hercules Prima GT (1985-1995)
Hercules Prima GX (1982- 1985)
Hercules Prima PRESTO (1981-1984)
Hercules Prima PRONTO (1981-1984)
Hercules Supra 4 Enduro (1981-1985)
Hercules Supra 4 GP (1981-1985) 1983)
Hercules KX-5 without fairing (1984-1995)
Hercules KX-5 fairing (1984-1995)
Hercules XE-5 Enduro (1984-1989)
Sachs 50S
Sachs 50SA
Sachs 501
Sachs 506
Sachs 50/5 AKF

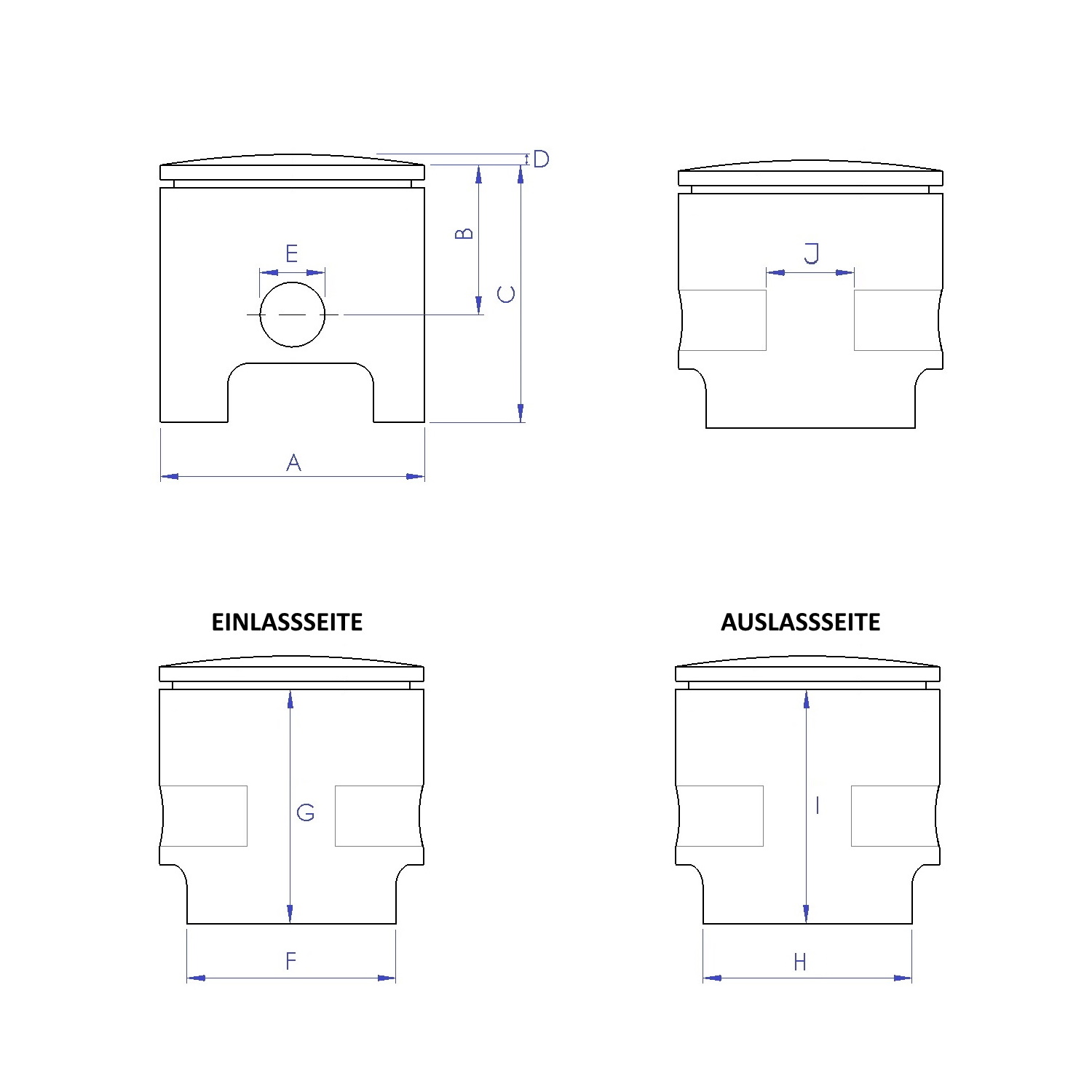

| Dimension H (piston skirt width outlet side): | 35 mm |
| Piston ring profile: | Rectangular ring |
| Piston ring width: | 2.00 mm |
| Dimension I (piston skirt length outlet side): | 45 mm |
| Dimension G (piston skirt length inlet side): | 45 mm |
| Piston ring dimension: | 45 x 1.5 mm |
| Cylinder bores: | 45 mm |
| Dimension B (compression height): | 28 mm |
| Dimension C + D (total height): | 51 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Dimension D (curvature): | 2 mm |
| Dimension A (piston diameter): | 44.xx mm |
| Tolerance size: | B (44,xxmm) |

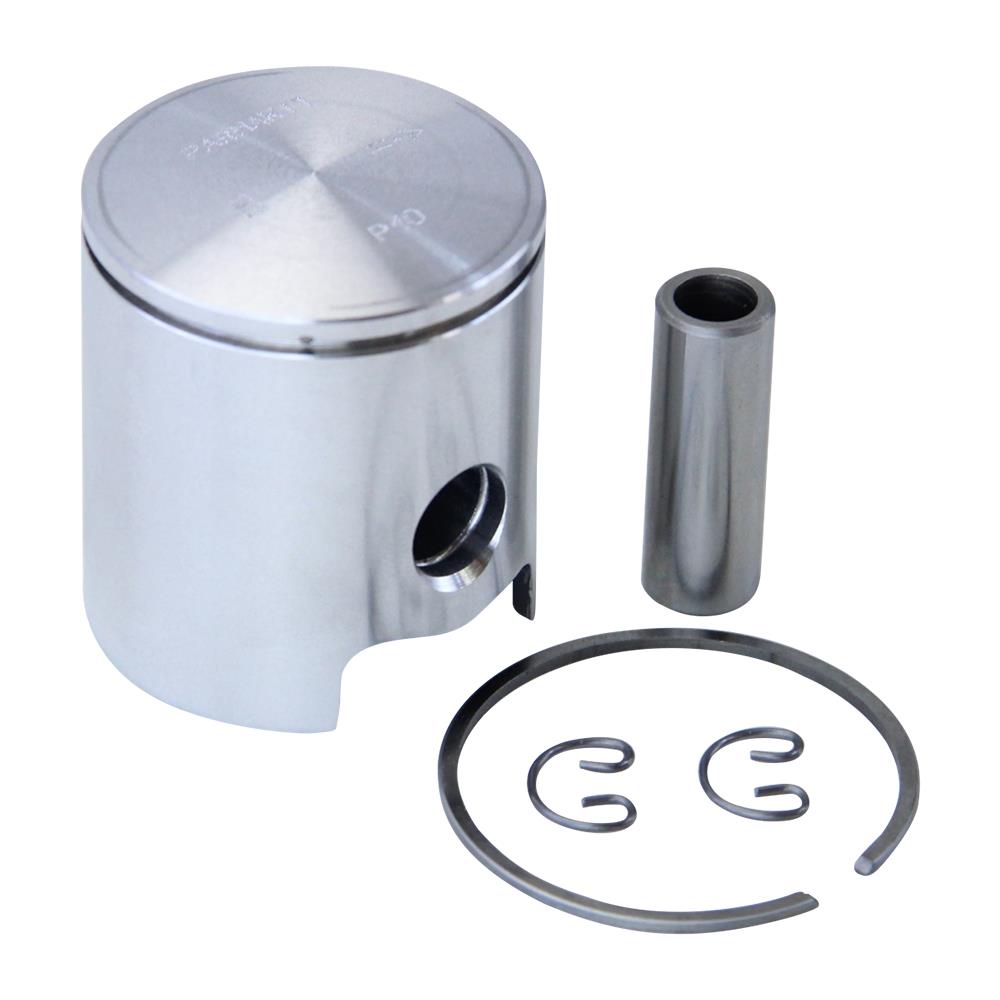

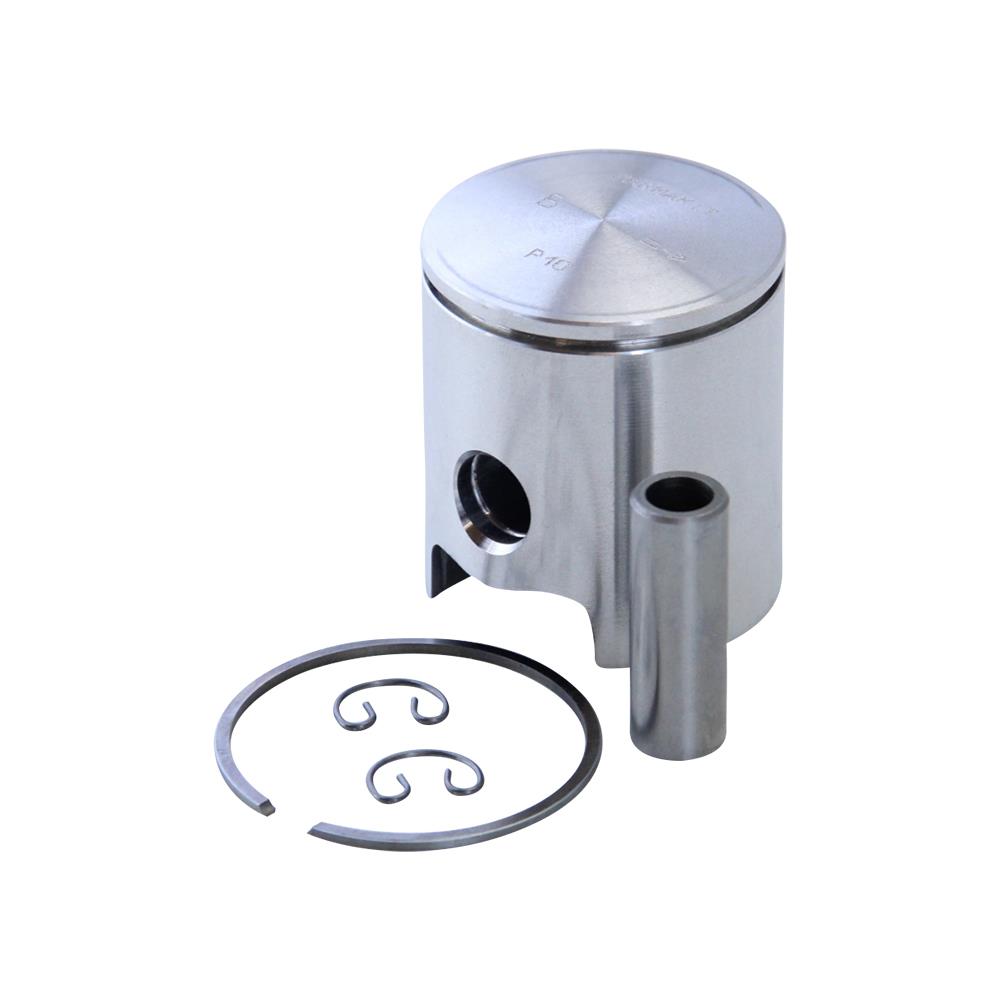

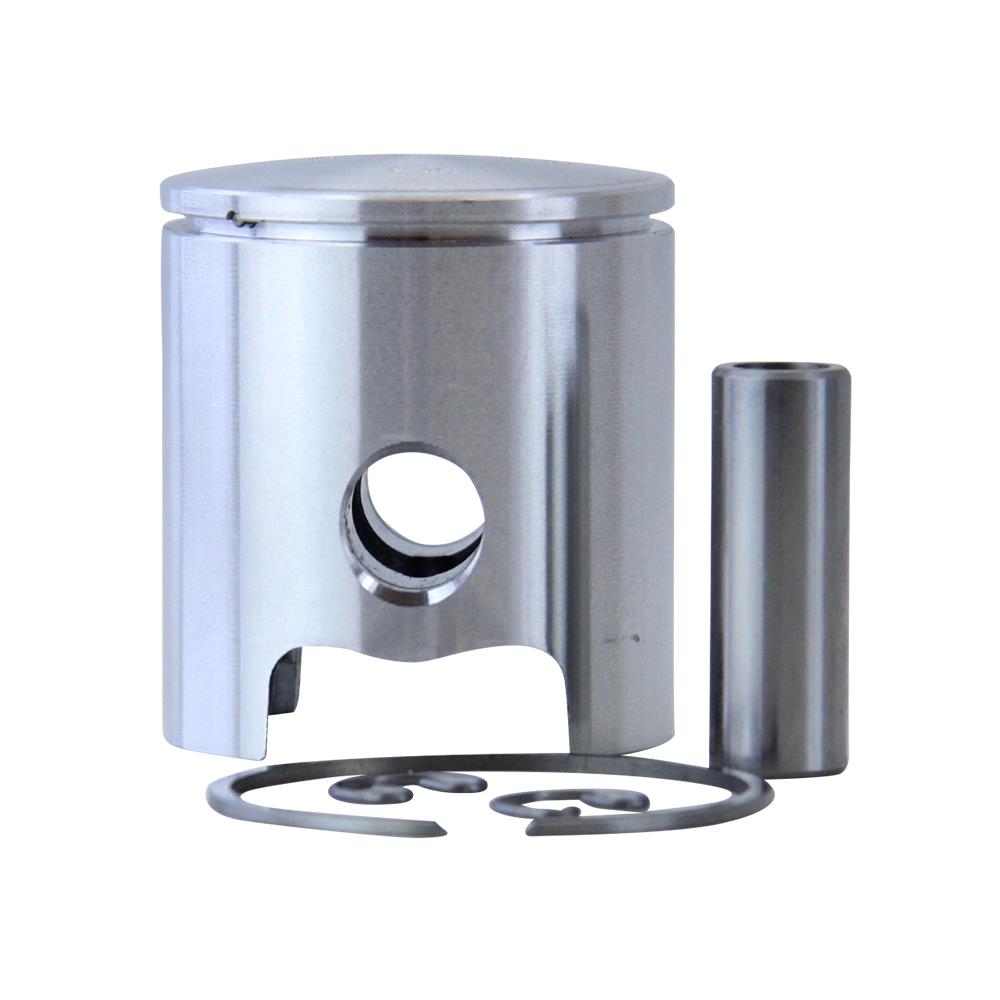

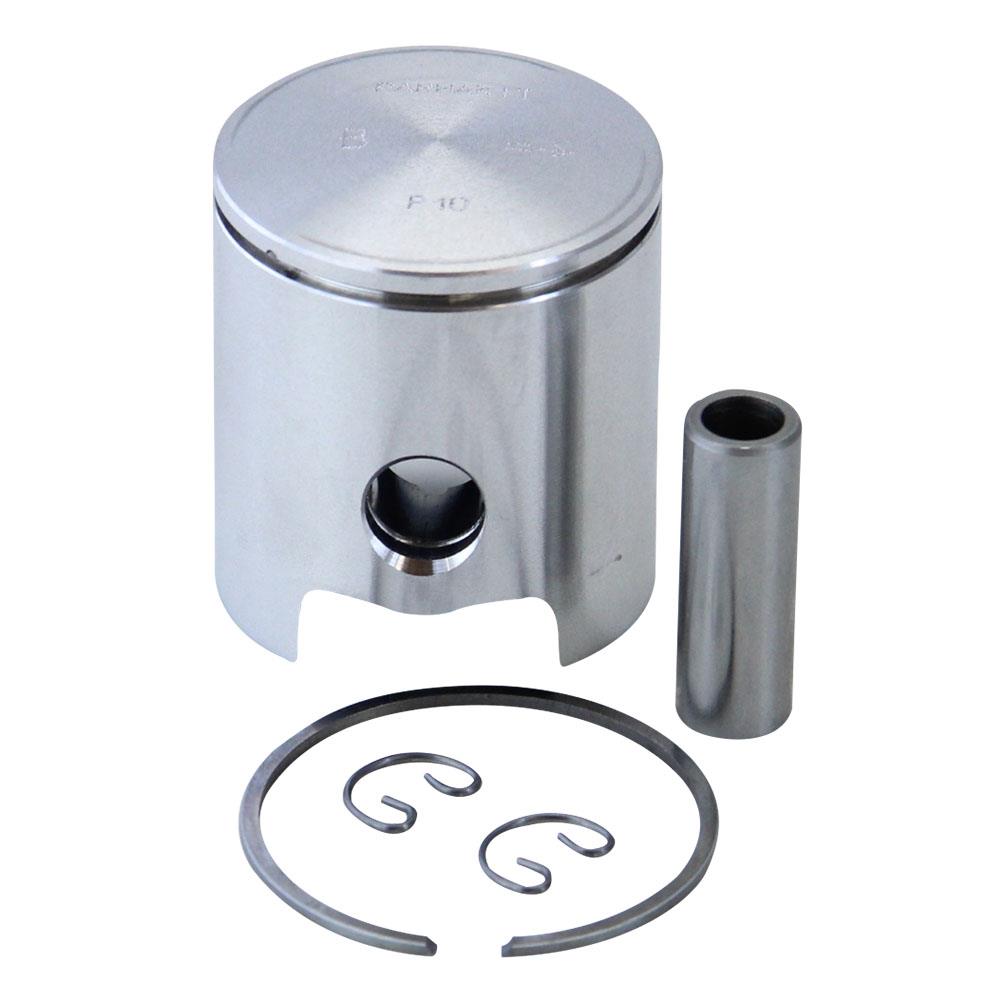

| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Piston ring shape: | C (groove for locking pin on the edge) |
| Bolt diameter: | 12 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4251048883094 |
| OE/OEM reference number(s): | Parmakit 64415.02B |
| Tuning & Styling Part: | Yes |
| Vintage part: | Yes |
| Bolt length: | 35 mm |
| Dimension J (max. needle bearing width): | 14 mm |
| Dimension F (piston skirt width inlet side): | 38.5 mm |
| Dimension C (piston height): | 49 mm |
| Color: | Silver |
| Piston diameter: | 45 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 64415.02B |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| Suitable for: | 70 ccm |
PARMAKIT - The motorcycle tuning company presents itself broadly positioned: On the one hand, it sees itself as a specialized supplier to the industry and a reliable parts supplier for moped riders. On the other hand, Parmakit is of course also involved in the tuning sector and offers a range of innovative special parts: from high-quality aluminum cylinder kits to variable ignition units. The experience values for this often come directly from the race track and the Parmakit factory drivers. In the meantime, more than 5,000 products of the company from Parma are on the market. At Parmakit is self-designed and from CNC milling to Nikasil coating manufactured by the employees themselves in two production and factory halls. Convince yourself of the Parmakit quality and order today your high-quality spare parts in the ZS2Radteile Onlineshop always at the best price!
