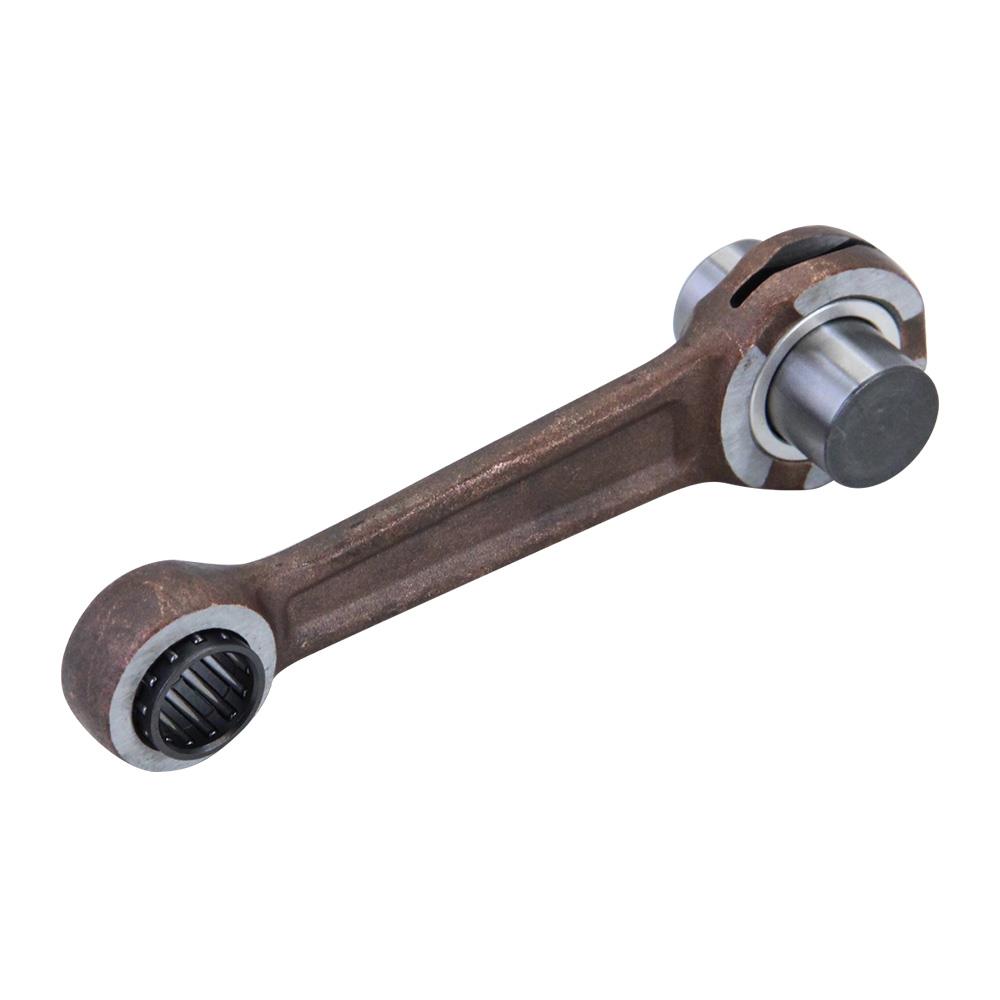

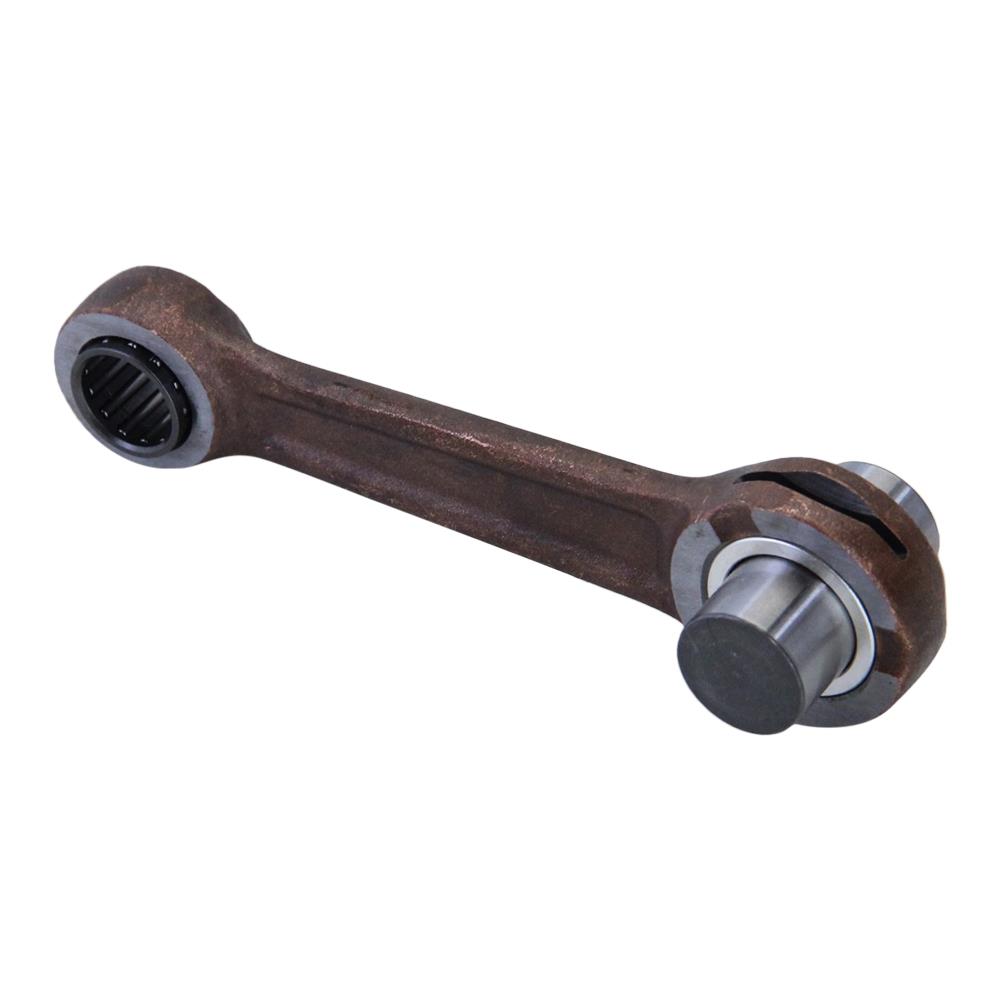

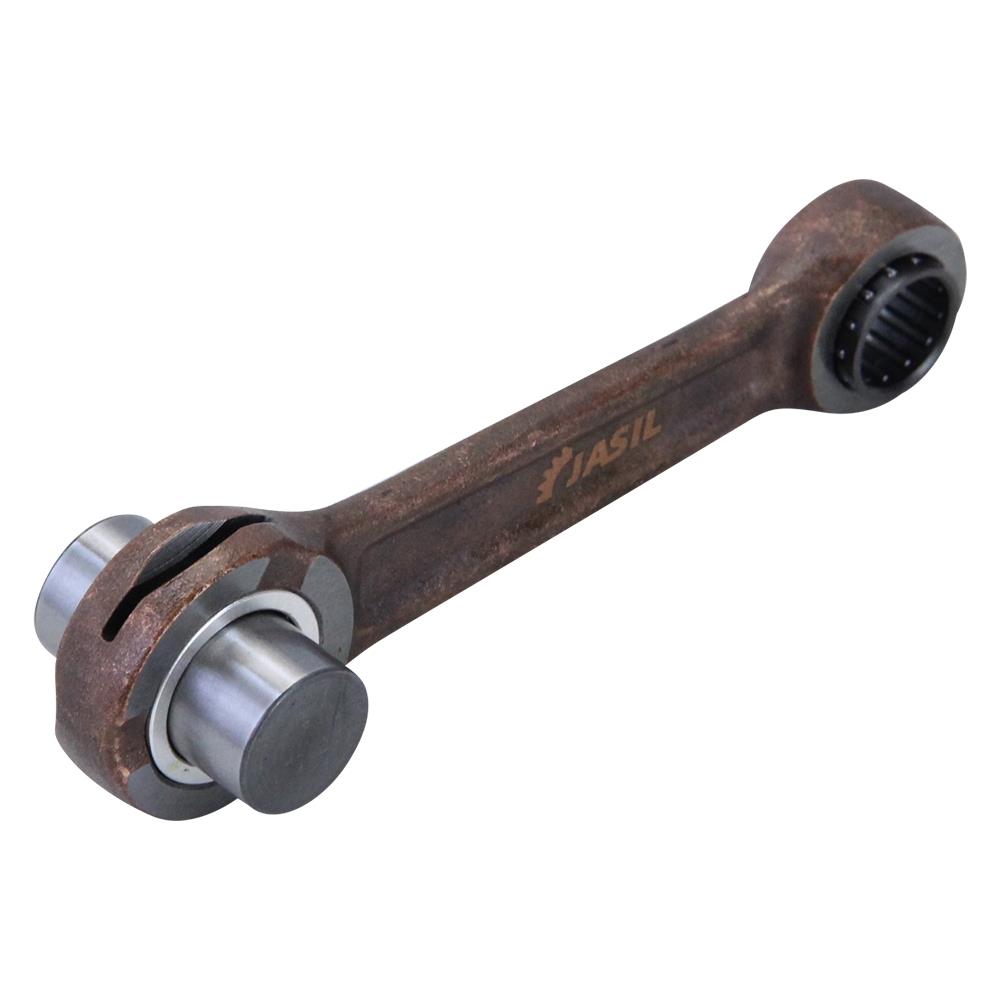

JASIL connecting rod repair kit ORIGINAL for Hercules 222 MF3 MP 2 3 4 R50 Lastboy // Sachs 50/2 50/3 50/4
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 6001038
- EAN: 5605822000365
- Manufacturer: JASIL - Top Racing
- Manufacturer no.: 6001038
Hercules 222 MFH (1966-)
Hercules MF 3 (1972-1975)
Hercules 222 T (1966-)
Hercules 222 TH (1967-)
Hercules 222 TS (1966-)
Hercules HR 1 (1972-1974)
Hercules LASTBOY (1965-)
Hercules MK 50 (1965-1966)
Hercules MK 50 (1967-1970 )
Hercules MP 2 (1971-1977)
Hercules MP 3 (1971-)
Hercules MP 4 Duo - Type 632 (1972-1978)
Hercules MP 4 Duo - Type 632 (1976-1978)
Hercules Optima MP 4 (1982-2002)
Hercules R 50 (1975-1979)
Hercules R 50 (1964-1979)
HerculesR 50 ( 1965-1974)
Hercules Prima G3 (1978-1987)
Hercules LASTBOY (1965-)
Hercules R 50 S (1961-1974)
Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S< br />Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA
Sachs 50/2 MLA 3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK
Sachs 50/3 MAK SF
Sachs 50/3 MKA
Sachs 50/3 MKA I
Sachs 50/3 L
Sachs 50/3 LS
Sachs 50/3 H"
Sachs 50/3 MLA
Sachs 50/3 MLA X
Sachs 50/3 MLA NL
Sachs 50/3 MLB
Sachs 50/3 LH
Sachs 50/3 LH X
Sachs 50/3 MLKB
Sachs 50/3 MLKA
Sachs 50/3 MLKA LKH
Sachs 50/3 LKH NL
Sachs 50/3 C
Sachs 50/3 C NL
Sachs 50/3 D
Sachs 50/3 MAKF
Sachs 50/3 MAKF SF
Sachs 50/3 MAKF X
Sachs 50/3 KF
Sachs 50/3 KF S
Sachs 50/3 BKF
Sachs 50/3 BKF S
Sachs 50/3 MLFB
Sachs 50/3 LFH
Sachs 50/3 LFS
Sachs 50/4 CF
Sachs 50/4 CF NL
Sachs 50/4 DF
Sachs 50/4 DF X
Sachs 50/4 LF
Sachs 50/4 LF NL
Sachs 50/ 4 MLFA
Sachs 50/4 MLFA NL
Sachs 50/4 MLFB
Sachs 50/4 MLKA X
Sachs 50/4 LKS
Sachs 50/4 LKH< /p>
| OE/OEM reference number(s): | Jasil - Top Racing 6 001 038 |
| Scope of delivery: | Bolt, Connecting rod, Needle roller bearing |
| GTIN: | 5605822000365 |

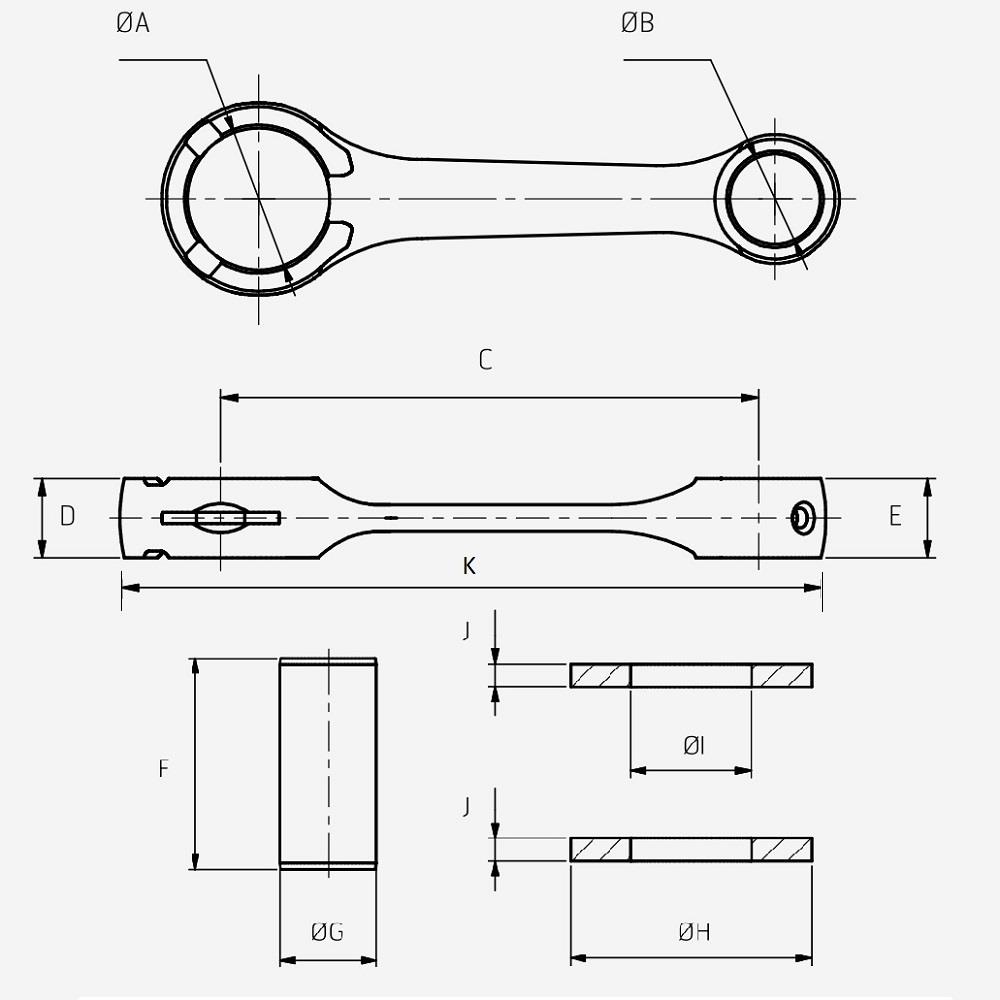

| Dimension K (total length of connecting rod): | 111 mm |
| Dimension F (length of lifting pin): | 30 mm |
| Dimension C (connecting rod length): | 85 mm |
| Needle roller bearing pin dimensions: | 16x21x10 mm |
| Dimension G (diameter of lifting pin): | 16 mm |
| Dimension E (top width of connecting rod): | 10 mm |
| Dimension D (width of connecting rod at bottom): | 10 mm |
| Dimension B (top diameter of connecting rod eye): | 15 mm |
| Dimension A (diameter of connecting rod eye at bottom): | 21 mm |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Tuning & Styling Part: | No |
| matching piston pin: | 12 mm |
| Surface finish: | Matt |
| Vintage part: | Yes |
| Color: | Grey |
| Scope of delivery: | 1x connecting rod repair kit |
| Manufacturer number: | 6001038 |
| Country and region of manufacture: | Portugal |
| Product type: | Connecting rod |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Connecting rod incl. needle bearing, crank pin |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Original |
Top Racing is a brand of the Portuguese company Jasil, founded in 1950 as a metalworking company and increasingly involved in the two-wheeler sector since the end of the 20th century. Top Racing products are designed primarily for use in racing. Top Racing manufactures a wide range of products for scooters, motorcycles and mopeds. Best known are the high quality crankshafts in the significant black and yellow boxes.
