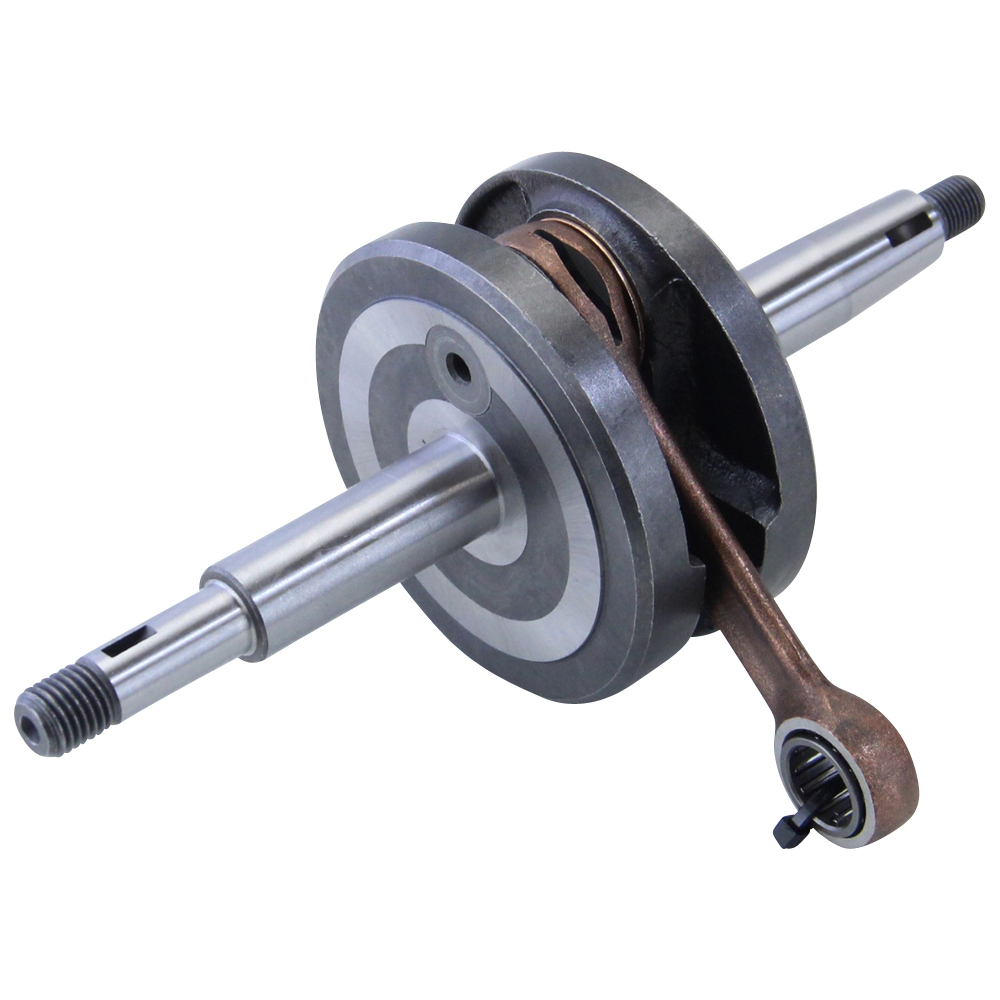

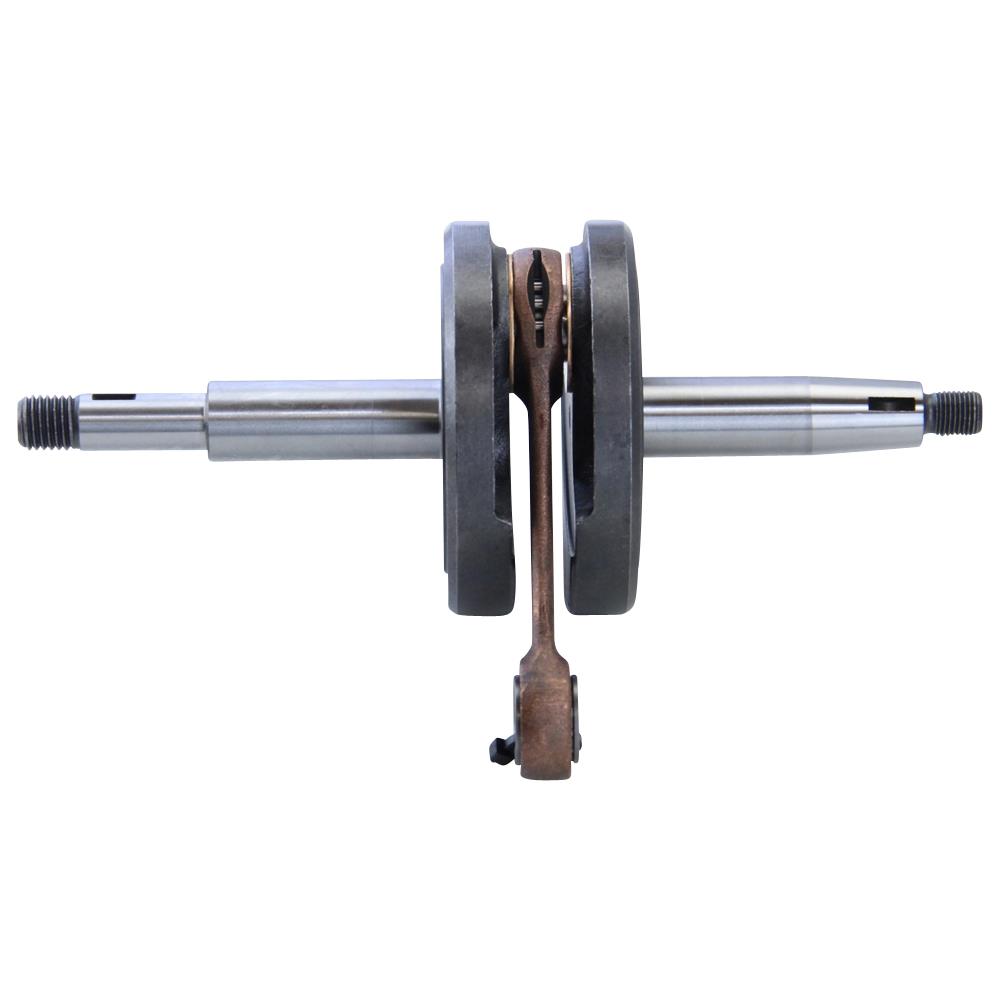

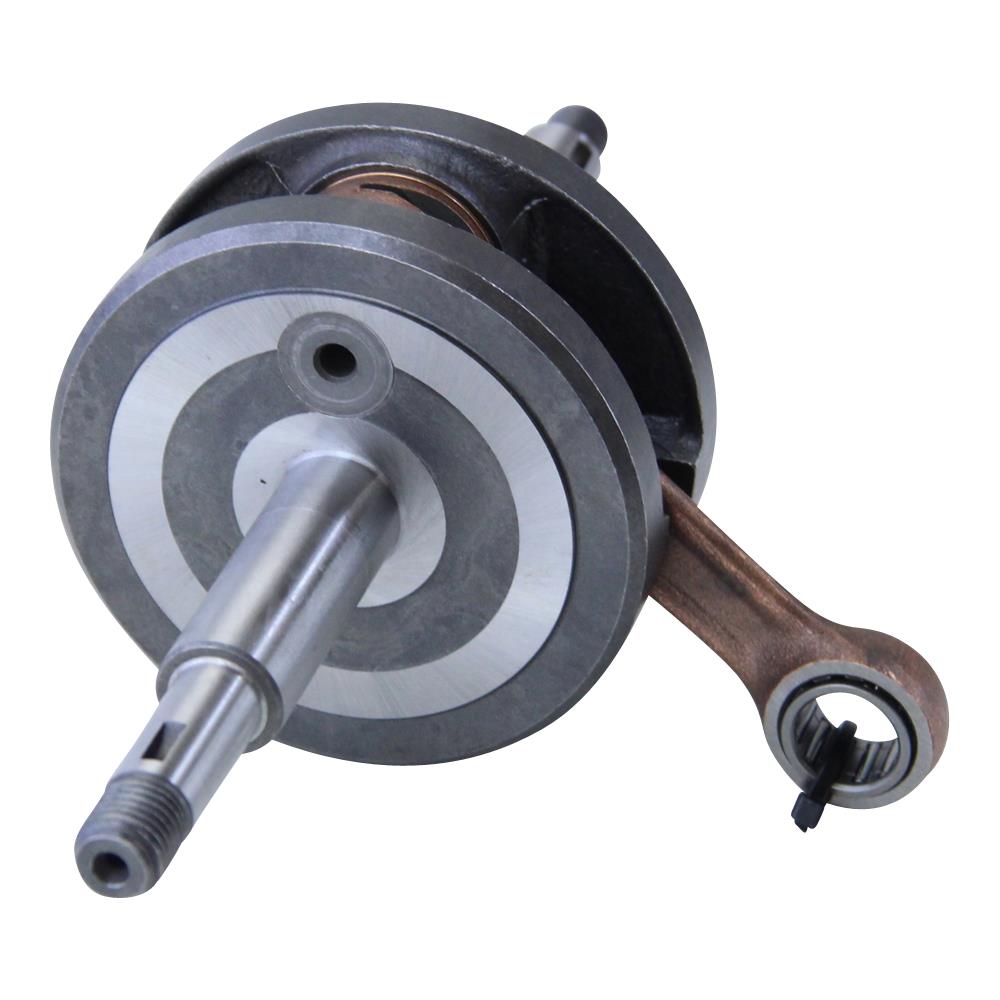

JASIL crankshaft for Hercules K 50 RE RL SX Sprint Ultra KX SB XE // Sachs 50/5 AKF / 50S
Prices incl. VAT plus shipping costs
Free shipping!
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 6030057
- EAN: 5605822003670
- Manufacturer: JASIL - Top Racing
- Manufacturer no.: 6030057
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1970 )
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976-1980)
Hercules K 50 RX (1969-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)
Hercules K 50 SX (1969-1972)
Hercules K 50 Sprint (1969-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules KX-5 ( 1984-1995)
Hercules RT 159 (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)
Hercules XE-5 Enduro (1984-1989)
Sachs 50/5 AKF
Sachs 50S cast iron cylinder
Sachs 50S aluminum cylinder
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 17 mm |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 73 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |

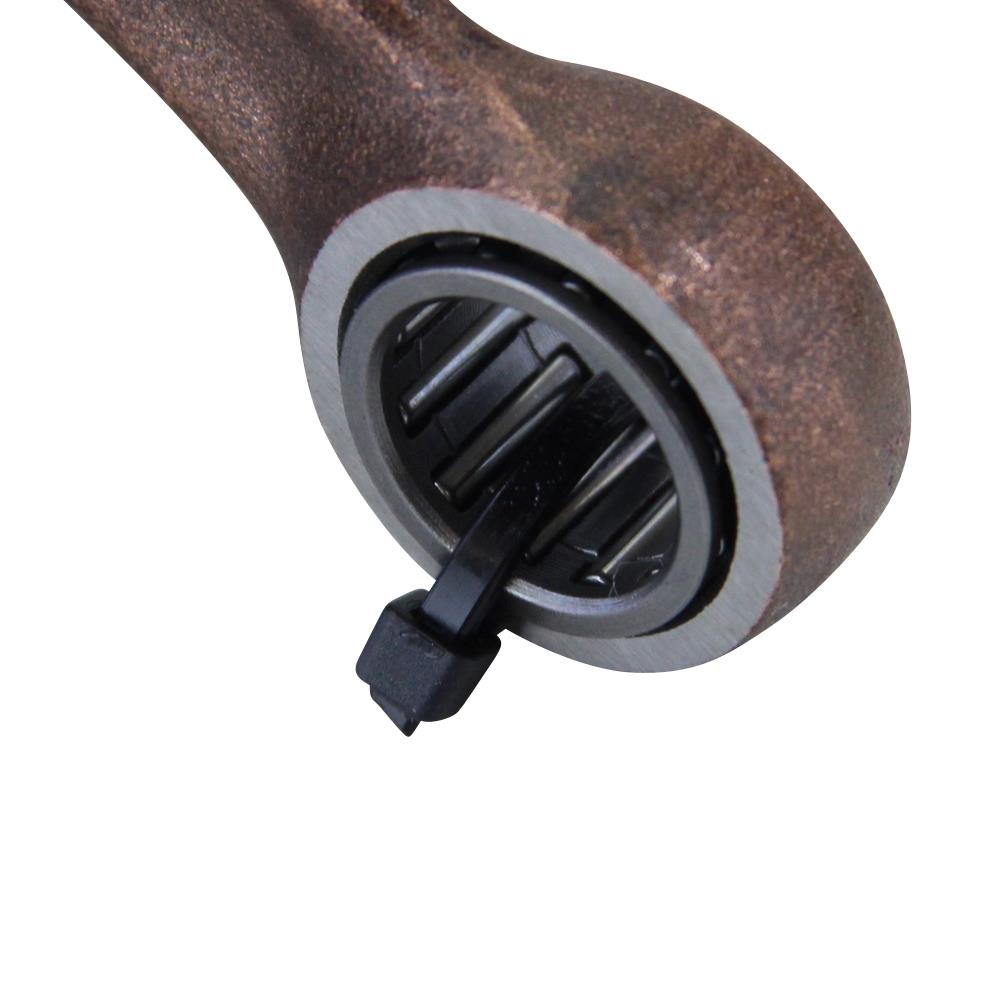

| Dimensions needle bearing piston pin: | 13.7x18x18 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M12 x 1.5 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 40.5 mm |
| Surface finish: | Matt |
| Special feature (crankshaft stub on alternator side): | Cone 1:7.5 |
| matching piston pin: | 14 mm |
| OE/OEM reference number(s): | 0288 104 100, 0288 104 717, 0288104717, 0288104100, 0286 325 000, Jasil - Top Racing 6 030 057, 0286325000 |
| GTIN: | 5605822003670 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 59 mm |
| Dimension I (thread on alternator side): | M10 x 1 left-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6030057 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Original |
J. Antonio da Silva
Parque Industrial de Adaúfe Lote I-6
4701-853 Braga PRT
Web page https://www.jasil.com/
Email: info@jasil.com
Top Racing is a brand of the Portuguese company Jasil, founded in 1950 as a metalworking company and increasingly involved in the two-wheeler sector since the end of the 20th century. Top Racing products are designed primarily for use in racing. Top Racing manufactures a wide range of products for scooters, motorcycles and mopeds. Best known are the high quality crankshafts in the significant black and yellow boxes.
