Piston 39mm 50cc Tol. BC (38,955-38.965mm) for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Type 444 446 447 460
- Item no: 100186
- EAN: 4060861114458
- Manufacturer: Meteor Piston
- Manufacturer no.: 100186
Piston 39mm 50cc Tol. BC (38,955-38.965mm) for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30... more
Product information "Piston 39mm 50cc Tol. BC (38,955-38.965mm) for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Type 444 446 447 460"
Piston 39mm 50cc Tol. BC (38,955-38.965mm) for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Type 444 446 447 460
Customers also searched for this product under:
Further links to "Piston 39mm 50cc Tol. BC (38,955-38.965mm) for Zündapp ZD 10 30 ZA 25 40 Automatic ZR 10 20 30 Type 444 446 447 460"
Eigenschaften more
| Tolerance size: | BC (38.955-38.965mm) |

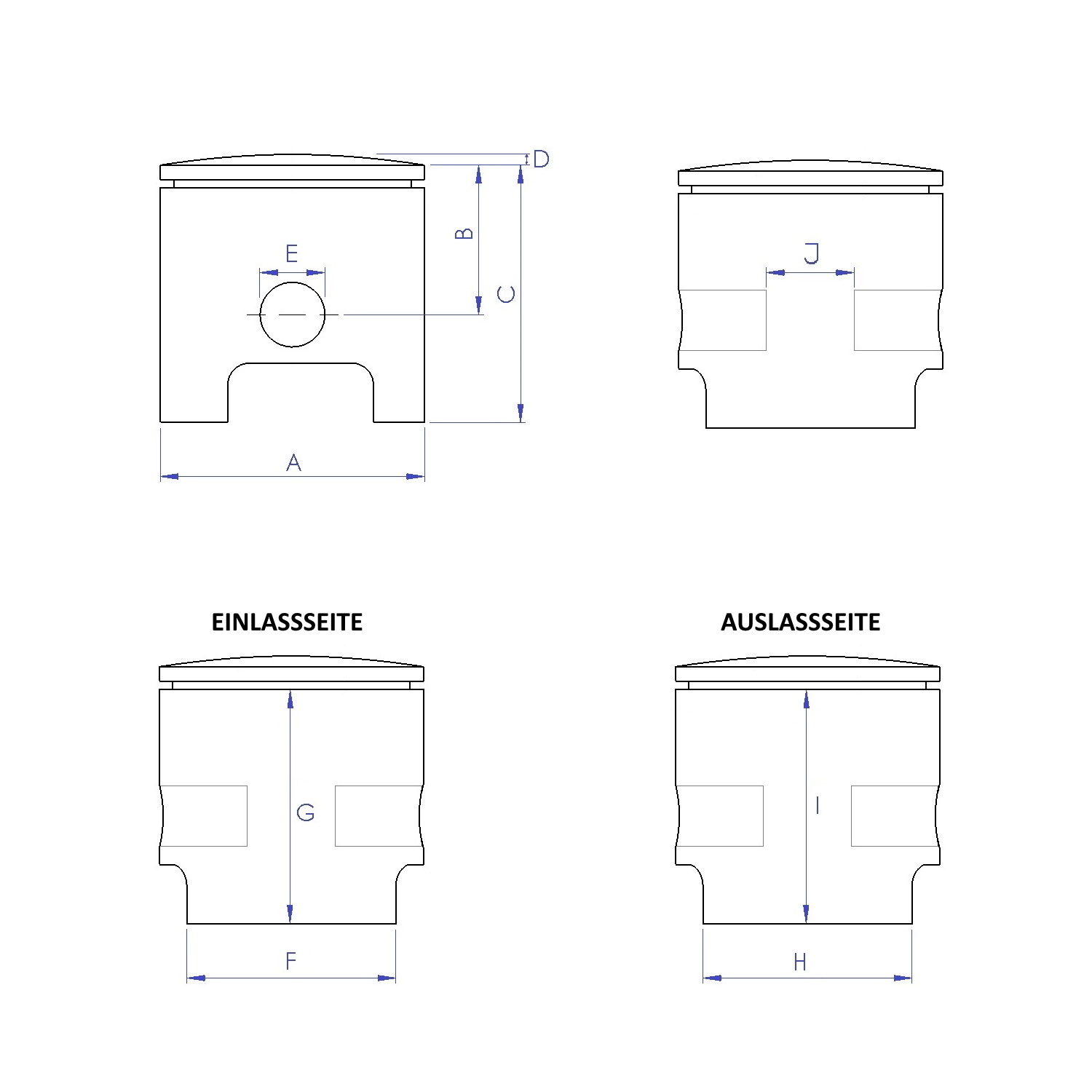

| Dimension B (compression height): | 23 mm |
| OE/OEM reference number(s): | 249-02.709, 250-02.711, Meteor AN2B1210SET (piston clips), Meteor F0390015016515H0I (piston ring), Meteor PC1011BC (piston), Meteor SP120315080HI (piston pin) |
| Bolt length: | 31.5 mm |
| Piston ring shape: | C (groove for locking pin on the edge) |
| Note: | 249-02.709 (original with 39x2 piston ring) |
| Dimension C (piston height): | 46.5 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Dimension C + D (total height): | 48 mm |
| Dimension G (piston skirt length inlet side): | 43 mm |
| Dimension I (piston skirt length outlet side): | 43 mm |
| Dimension F (piston skirt width inlet side): | 35 mm |
| Dimension H (piston skirt width outlet side): | 30.5 mm |
| GTIN: | 4060861114458 |
| Dimension A (piston diameter): | 38.955 - 38.965 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension D (curvature): | 1.5 mm |
| Piston ring dimension: | 39 x 1.5 mm |

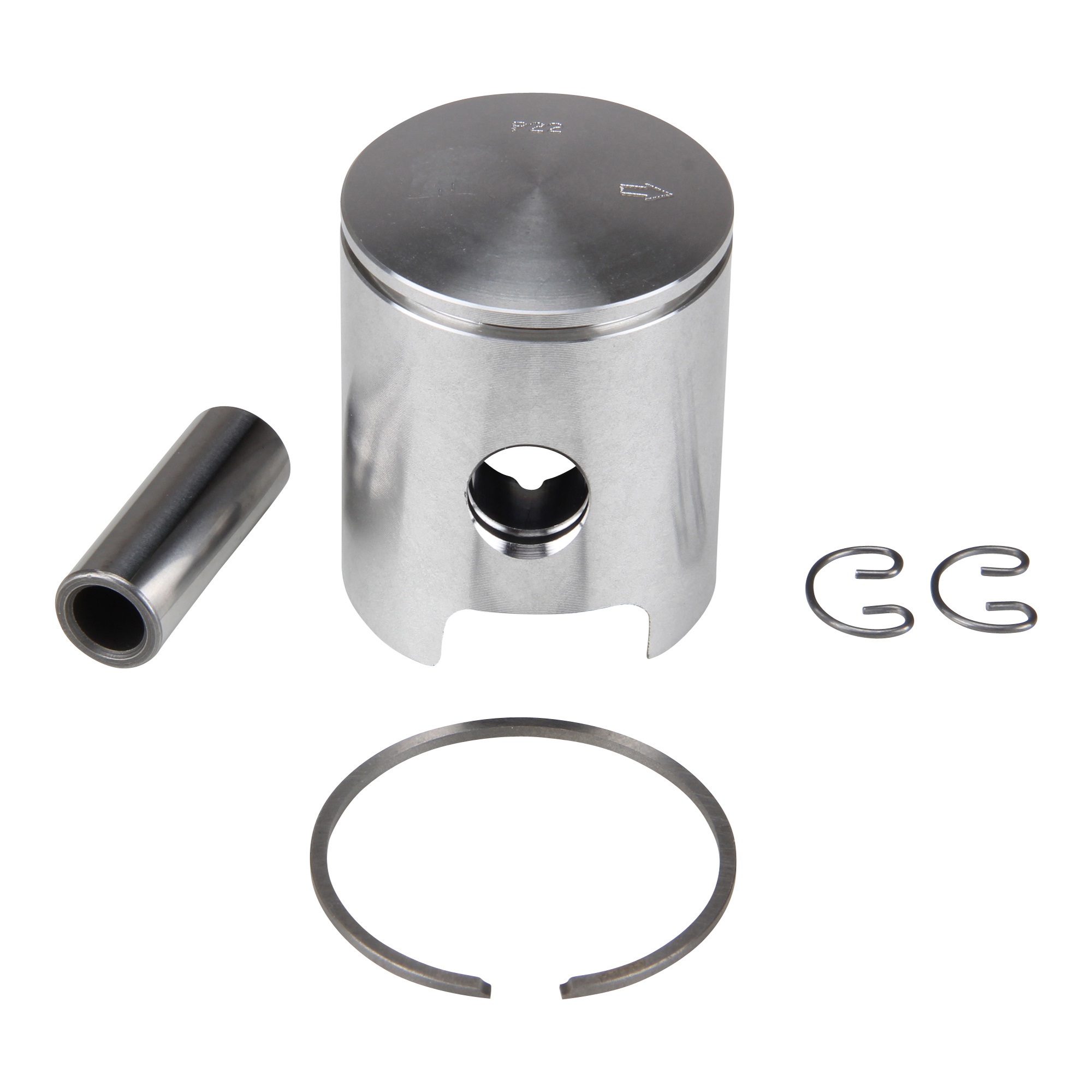

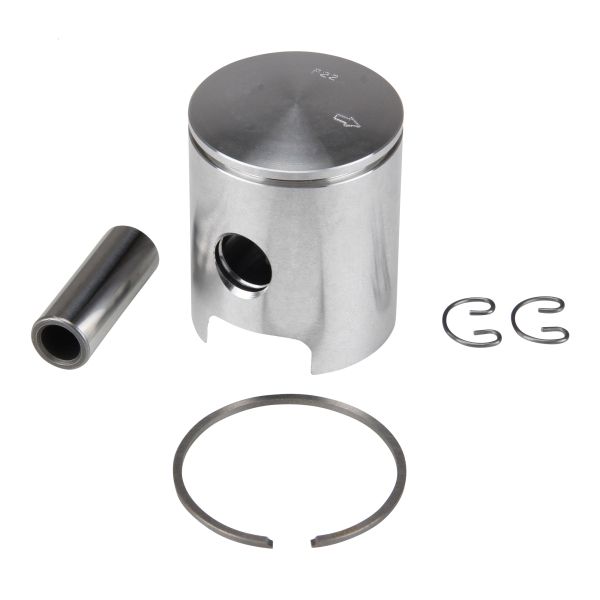

| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Bolt diameter: | 12 mm |
| Piston ring profile: | Rectangular ring |
| Piston ring width: | 1.65 mm |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC1011BC |
| Country and region of manufacture: | Italy |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Weight: | 0.075 kg |
| Material: | Aluminum alloy |
| Suitable for: | 50 cc |
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings... more
"Meteor Piston"
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
