Preview: Kurbelwelle (14mm Kobo) für Hercules K 50 RE RL SX Sprint Ultra KX SB XE (192166)

Kurbelwelle (14mm Kobo) für Hercules K 50 RE RL SX Sprint Ultra KX SB XE (192166)

Bewerten

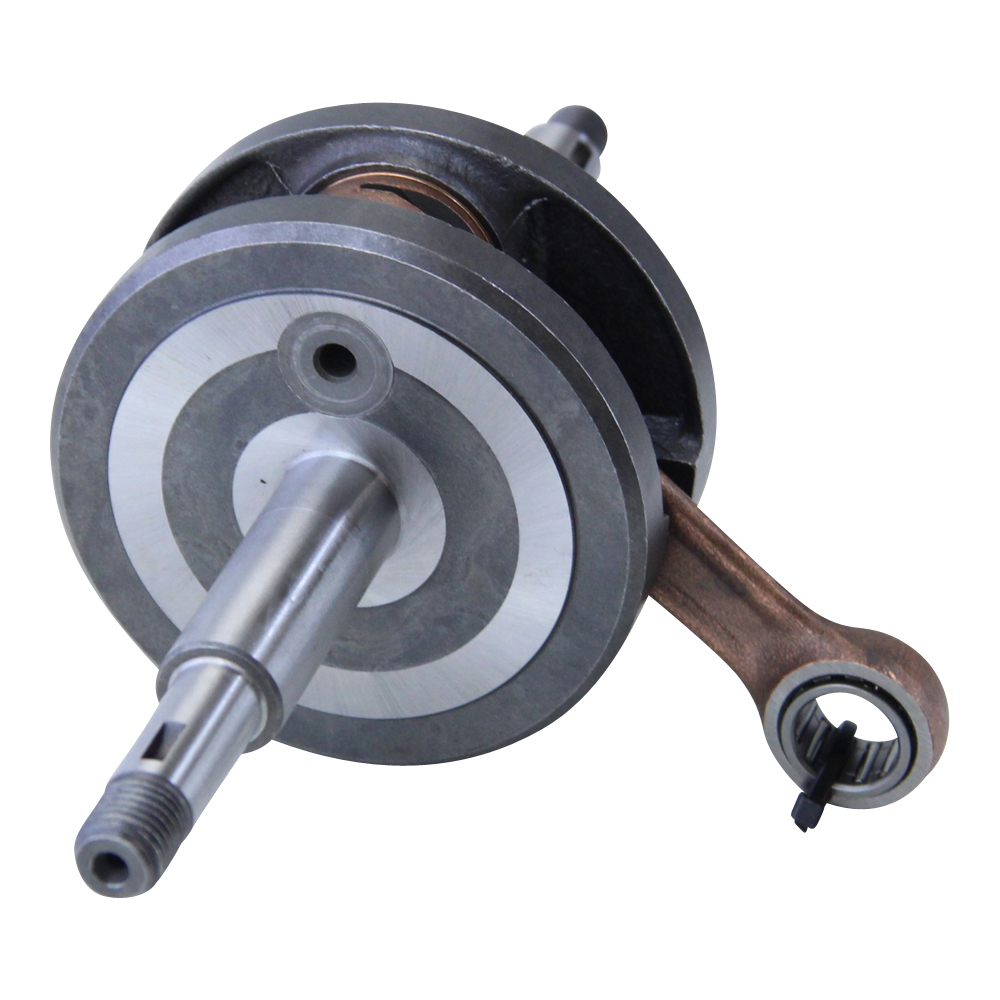

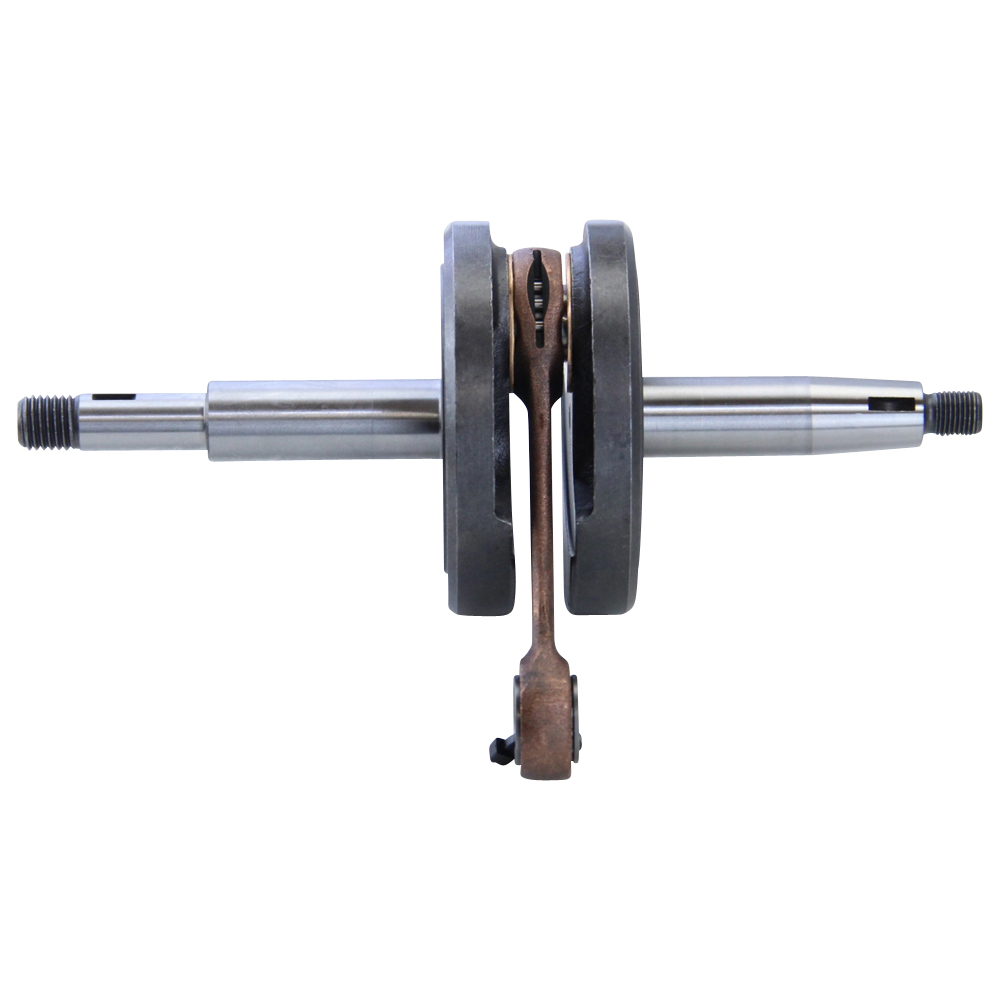

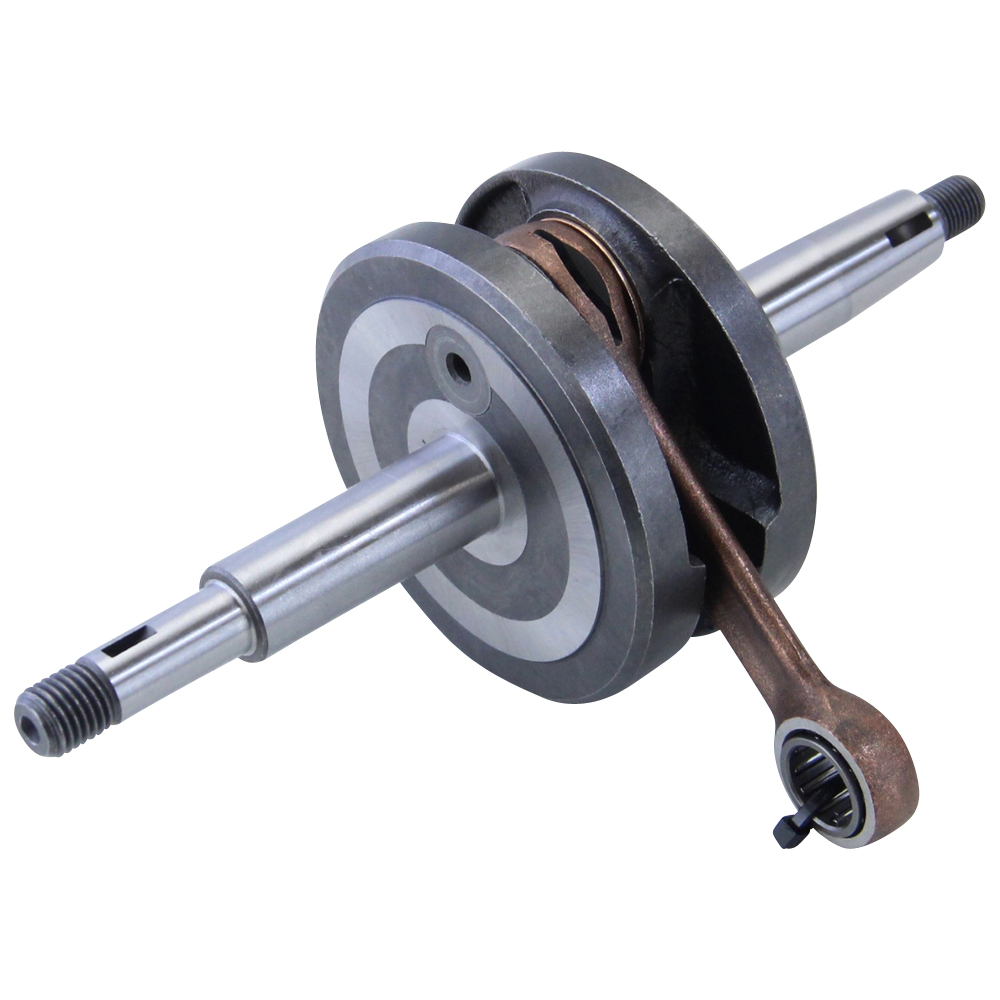

Crankshaft (14mm Kobo) for Hercules K 50 RE RL SX Sprint Ultra KX SB XE

€119.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

Free shipping!

IN STOCK - Delivery time 1-3 working days

Only a few left!

Item no: 192166
EAN: 4060861084614
Manufacturer: Citomerx
Manufacturer no.: 192166

Hercules K 50 RS (1968-1970) Hercules K 50 Sport (1968-1969) Hercules K 50 Super Sport... more

Close menu

Product information "Crankshaft (14mm Kobo) for Hercules K 50 RE RL SX Sprint Ultra KX SB XE"

Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1970 )
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976-1980)
Hercules K 50 RX (1969-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)
Hercules K 50 SX (1969-1972)
Hercules K 50 Sprint (1969-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules KX-5 ( 1984-1995)
Hercules RT 159 (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)
Hercules XE-5 Enduro (1984-1989)

Customers also searched for this product under:

Further links to "Crankshaft (14mm Kobo) for Hercules K 50 RE RL SX Sprint Ultra KX SB XE"

Eigenschaften more

zurück

GTIN:	4060861084614
OE/OEM reference number(s):	0286 325 000, 0288 104 100, 0288 104 717, 0286325000, 0288104100, 0288104717

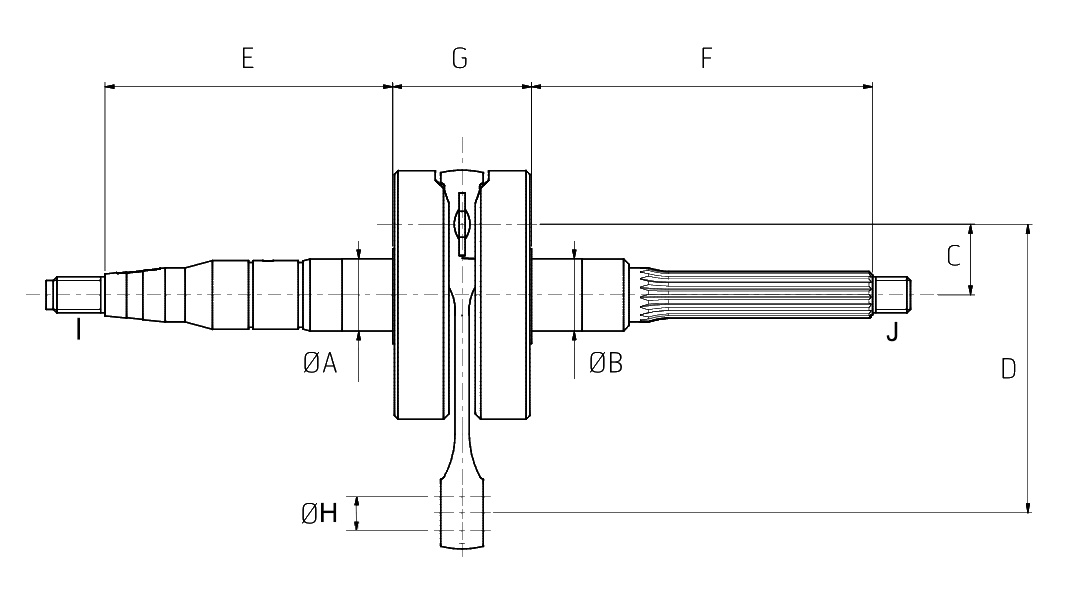

Dimension D (connecting rod length):	85 mm
Dimension B (shaft diameter on coupling side):	17 mm
Dimension G (width of crank webs):	40.5 mm
Dimension I (thread on alternator side):	M10 x 1 left-hand thread
Dimension J (thread on coupling side):	M12 x 1.5 right-hand thread
matching piston pin:	12 mm
Dimension E (length of crankshaft stub on alternator side):	59 mm
Dimension F (length of crankshaft stub on clutch side):	73 mm
Special feature (crankshaft stub on alternator side):	Cone 1:7.5
Dimension H (top diameter of connecting rod eye):	15 mm

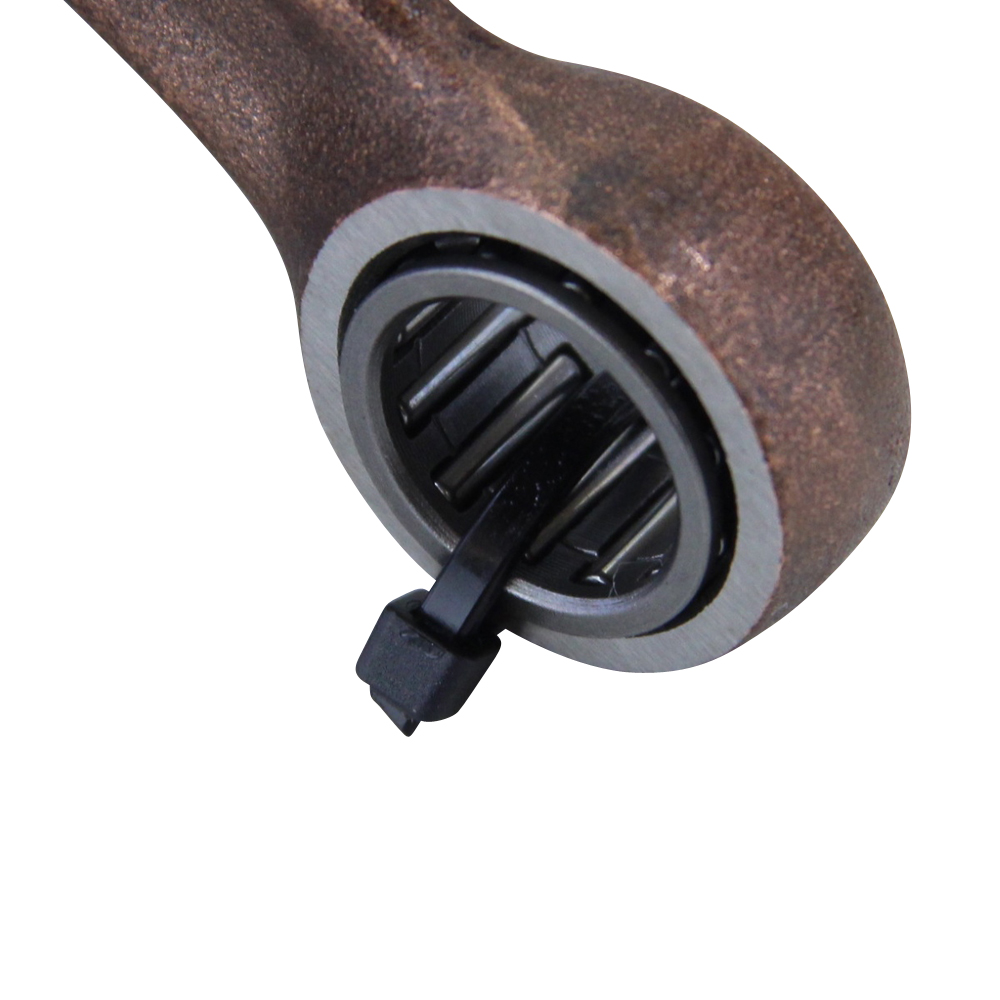

Dimensions needle bearing piston pin:	12x15x15 mm
Dimension C (stroke pin offset = half stroke):	22 mm
Vintage part:	Yes
Dimension A (shaft diameter on alternator side):	17 mm
Crankshaft stroke:	44 mm
Tuning & Styling Part:	No
Crankshaft type:	Full cheek crankshaft
Scope of delivery:	Crankshaft + needle bearing
Surface finish:	Matt
Color:	Grey
Scope of delivery:	1x crankshaft
Manufacturer number:	192166
Country and region of manufacture:	China
Product type:	Crankshaft
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Crankshaft incl. needle bearing
Manufacturer warranty:	2 years
Weight:	not specified
Material:	Cast iron
Type:	Standard
