JASIL Kurbelwelle ORIGINAL (E15 Lager 15mm) für Sachs 50/2 50/3 Motor // Hercules 222 MF3 HR1 Lastboy MK50 MP 2 3 4 R50 (6030055)

Bewerten

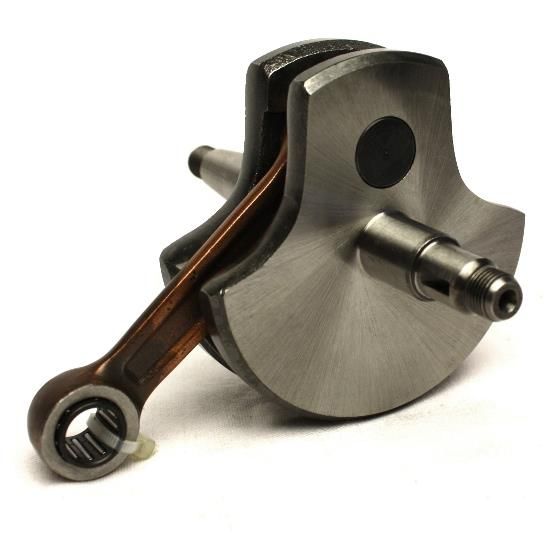

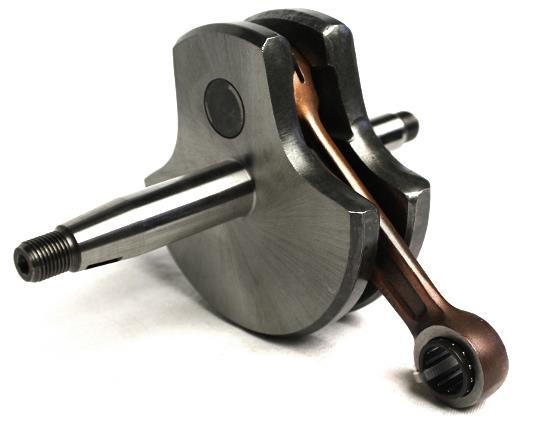

JASIL crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine // Hercules 222 MF3 HR1 Lastboy MK50 MP 2 3 4 R50

€109.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

Free shipping!

IN STOCK - Delivery time 1-3 working days

Only a few left!

Item no: 6030055
EAN: 5605822003656
Manufacturer: JASIL - Top Racing
Manufacturer no.: 6030055

Hercules 222 MFH (1966-) Hercules MF 3 (1972-1975) Hercules 222 T (1966-) Hercules 222 TH... more

Close menu

Product information "JASIL crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine // Hercules 222 MF3 HR1 Lastboy MK50 MP 2 3 4 R50"

Hercules 222 MFH (1966-)
Hercules MF 3 (1972-1975)
Hercules 222 T (1966-)
Hercules 222 TH (1967-)
Hercules 222 TS (1966-)
Hercules HR 1 (1972-1974)
Hercules LASTBOY (1965-)
Hercules MK 50 (1965-1966)
Hercules MK 50 (1967-1970 )
Hercules MP 2 (1971-1977)
Hercules MP 3 (1971-)
Hercules MP 4 Duo - Type 632 (1972-1978)
Hercules MP 4 Duo - Type 632 (1976-1978)
Hercules Optima MP 4 (1982-2002)
Hercules R 50 (1975-1979)
Hercules R 50 (1964-1979)
HerculesR 50 ( 1965-1974)

Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S
Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA
Sachs 50/2 MLA X
Sachs 50/2 MLB
Sachs 50/2 MLC

Sachs 50/3 MA I
Sachs 50/3 MA NL
Sachs 50/3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK /3 L
Sachs 50/3 LS
Sachs 50/3 H

Customers also searched for this product under:

Further links to "JASIL crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine // Hercules 222 MF3 HR1 Lastboy MK50 MP 2 3 4 R50"

Video more

schliessen

Eigenschaften:

Eigenschaften more

zurück

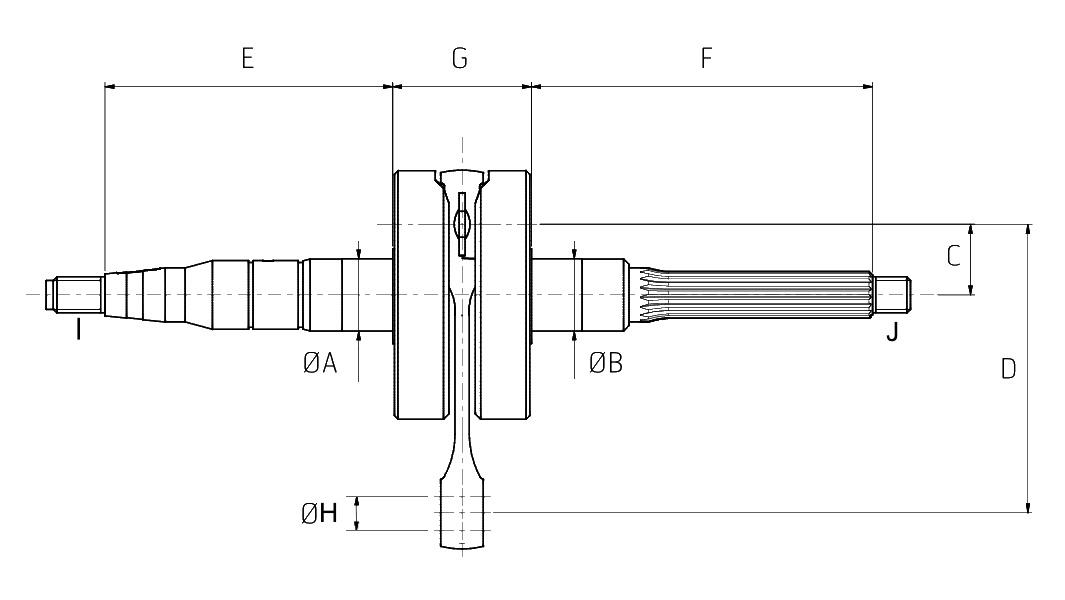

OE/OEM reference number(s):	0286 139 400, 0286139400, Jasil - Top Racing 6 030 055
Dimension H (top diameter of connecting rod eye):	15 mm
GTIN:	5605822003656
Dimension G (width of crank webs):	30,1 mm
Dimension F (length of crankshaft stub on clutch side):	32,5 mm
Dimension E (length of crankshaft stub on alternator side):	52 mm
Dimension C (stroke pin offset = half stroke):	21 mm
Crankshaft stroke:	42 mm
Dimension J (thread on coupling side):	M10 x 1 Rechtsgewinde
Dimension A (shaft diameter on alternator side):	15 mm
Dimension D (connecting rod length):	85 mm
Crankshaft type:	Halbwangenkurbelwelle
Dimensions needle bearing piston pin:	12x15x15 mm
matching piston pin:	12 mm
Vintage part:	Yes
Tuning & Styling Part:	No
Dimension I (thread on alternator side):	M10 x 1 Rechtsgewinde
Dimension B (shaft diameter on coupling side):	15 mm
Scope of delivery:	Crankshaft + needle bearing
Surface finish:	Matt
Color:	Grey
Scope of delivery:	1x crankshaft
Manufacturer number:	6030055
Country and region of manufacture:	Portugal
Product type:	Crankshaft
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Crankshaft incl. needle bearing
Manufacturer warranty:	2 years
Weight:	not specified
Material:	Cast iron
Type:	Original

Top Racing is a brand of the Portuguese company Jasil, founded in 1950 as a metalworking company... more

schliessen

"JASIL - Top Racing"

Top Racing is a brand of the Portuguese company Jasil, founded in 1950 as a metalworking company and increasingly involved in the two-wheeler sector since the end of the 20th century. Top Racing products are designed primarily for use in racing. Top Racing manufactures a wide range of products for scooters, motorcycles and mopeds. Best known are the high quality crankshafts in the significant black and yellow boxes.
