Preview: Kolben Set 38mm 50ccm für Sachs 504/1 505/1 505/2 A B (102048)

Kolben Set 38mm 50ccm für Sachs 504/1 505/1 505/2 A B (102048)

Bewerten

Piston set 38mm 50cc for Sachs 504/1 505/1 505/2 AB

€30.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Last article - Buy now

Item no: 102048
EAN: 4060861180569
Manufacturer: Citomerx
Manufacturer no.: 102048

Sachs 504/1 A Sachs 504/1 B Sachs 505/1 A Sachs 505/1 A NL Sachs 505/1 B Sachs 505/2 AK S Sachs... more

Close menu

Product information "Piston set 38mm 50cc for Sachs 504/1 505/1 505/2 AB"

Sachs 504/1 A
Sachs 504/1 B
Sachs 505/1 A
Sachs 505/1 A NL
Sachs 505/1 B
Sachs 505/2 AK S
Sachs 505/2 AK SF
Sachs 505/2 A NL
Sachs 505/2 B

Customers also searched for this product under:

Further links to "Piston set 38mm 50cc for Sachs 504/1 505/1 505/2 AB"

Eigenschaften more

zurück

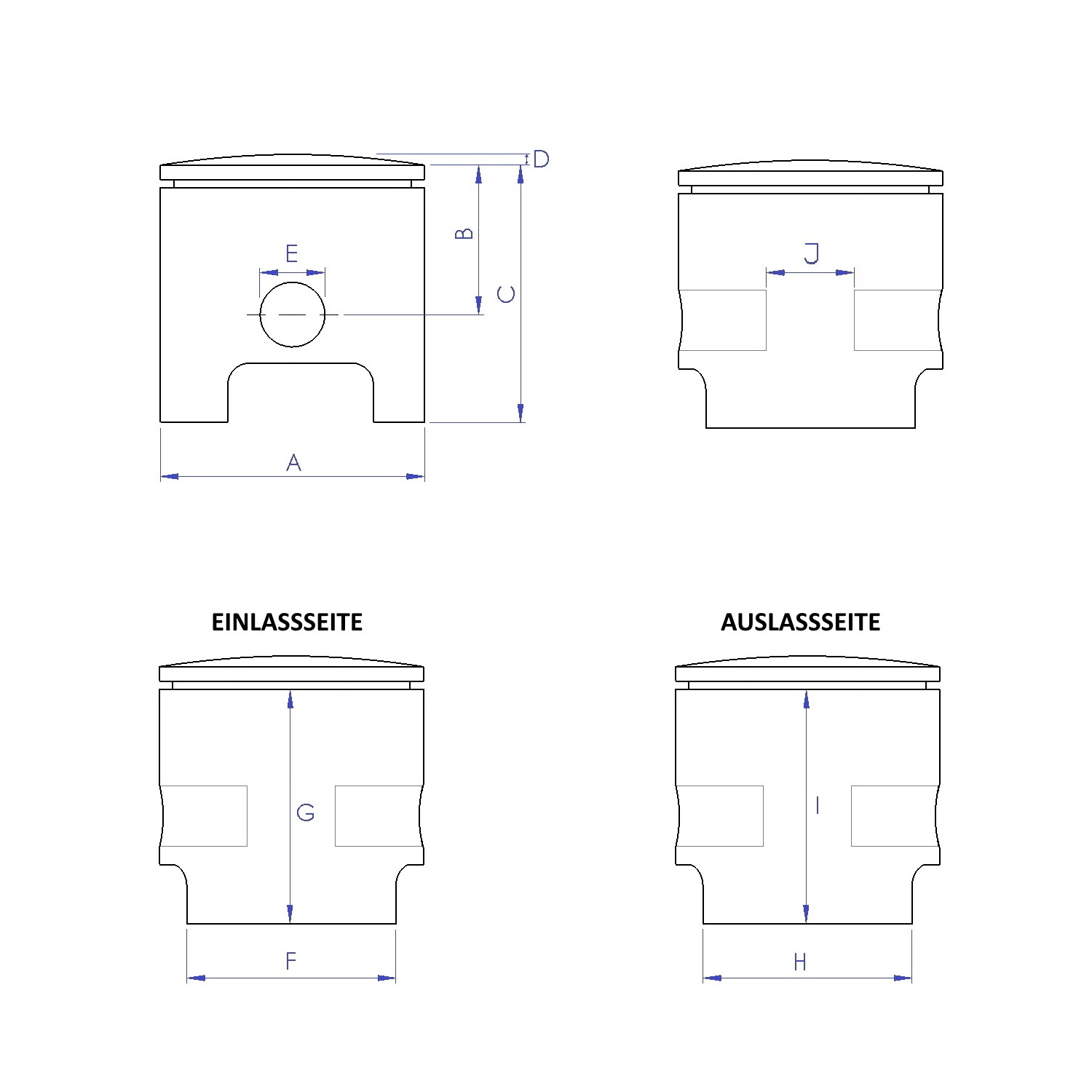

Dimension D (curvature):	3.5 mm
Dimension B (compression height):	28 mm
Piston ring (bottom) Shape:	C (groove for locking pin on the edge)
Piston ring (bottom) Profile:	Rectangular ring
Dimension C + D (total height):	53.5 mm
Dimension F (piston skirt width inlet side):	35 mm
Piston ring (top) Width:	1.65 mm
Piston ring (bottom) Width:	1.65 mm
Dimension A (piston diameter):	38.00 mm
Dimension J (max. needle bearing width):	15 mm
Piston ring (top) Shape:	C (groove for locking pin on the edge)
Piston ring (top) Dimension:	38 x 2.0 mm
Piston ring (bottom) Dimension:	38 x 2.0 mm
OE/OEM reference number(s):	0286 378 005, 0286378005
Dimension G (piston skirt length inlet side):	39.5 mm
Dimension I (piston skirt length outlet side):	39.5 mm
Dimension H (piston skirt width outlet side):	35 mm
GTIN:	4060861180569
Piston ring (top) Profile:	Rectangular ring
Dimension C (piston height):	50 mm

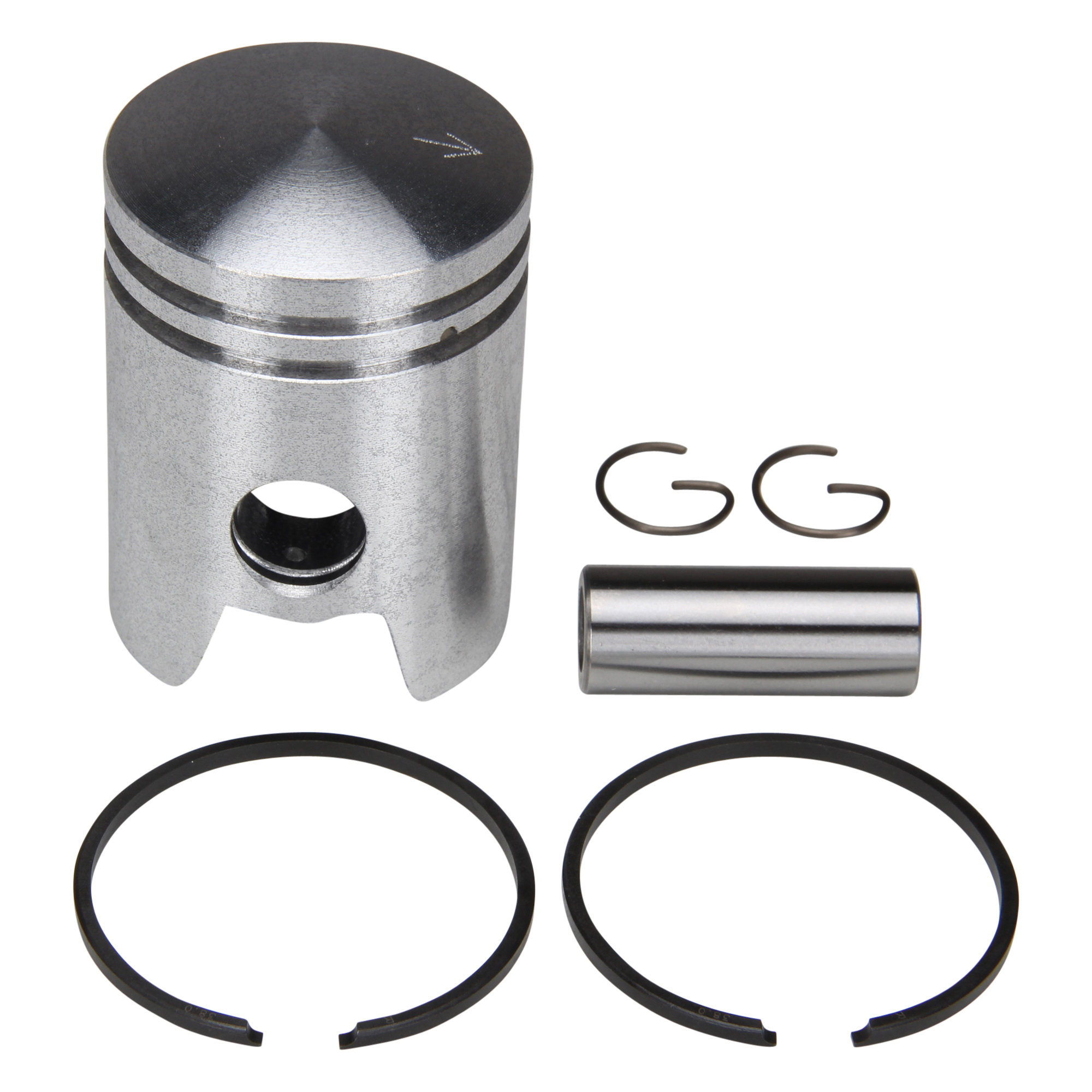

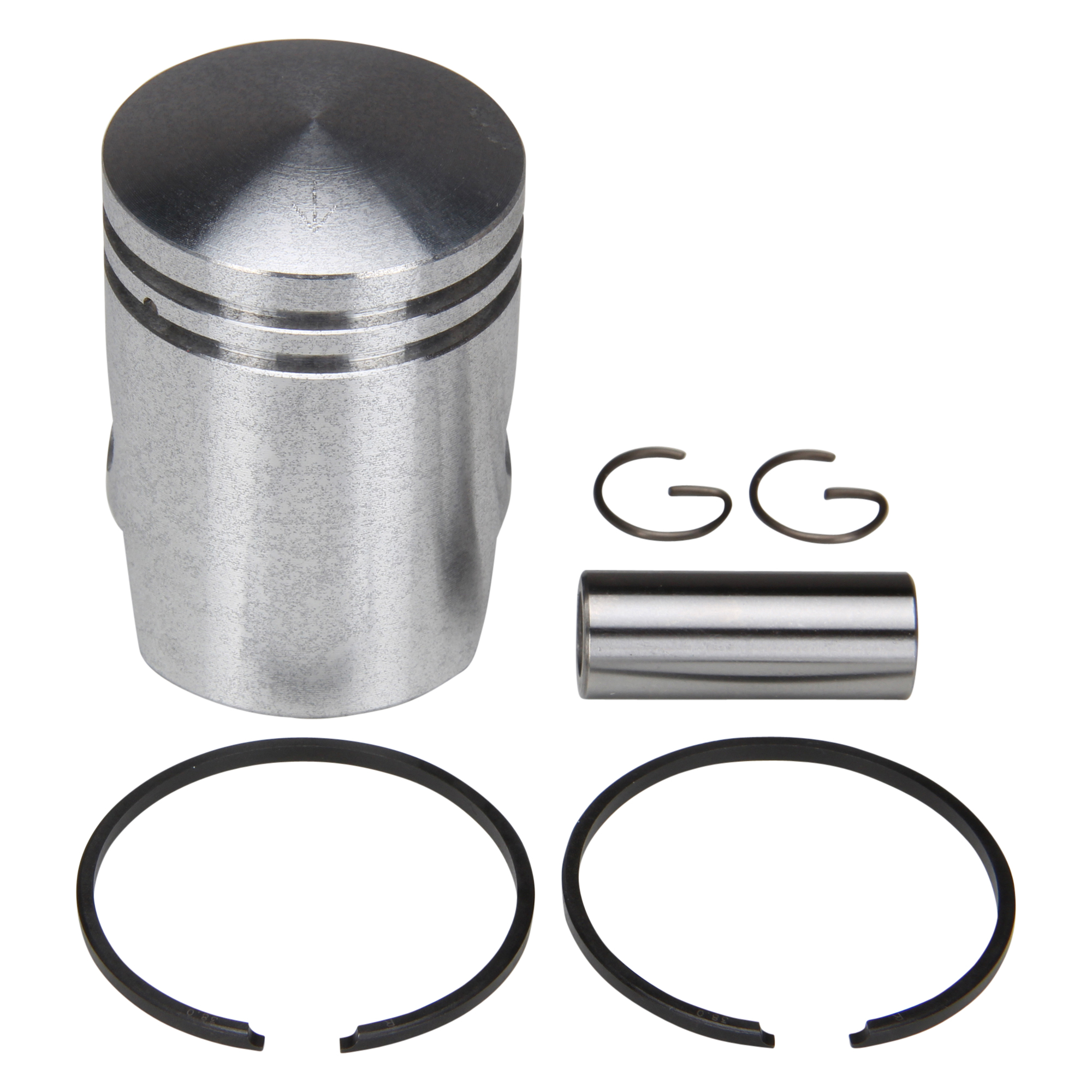

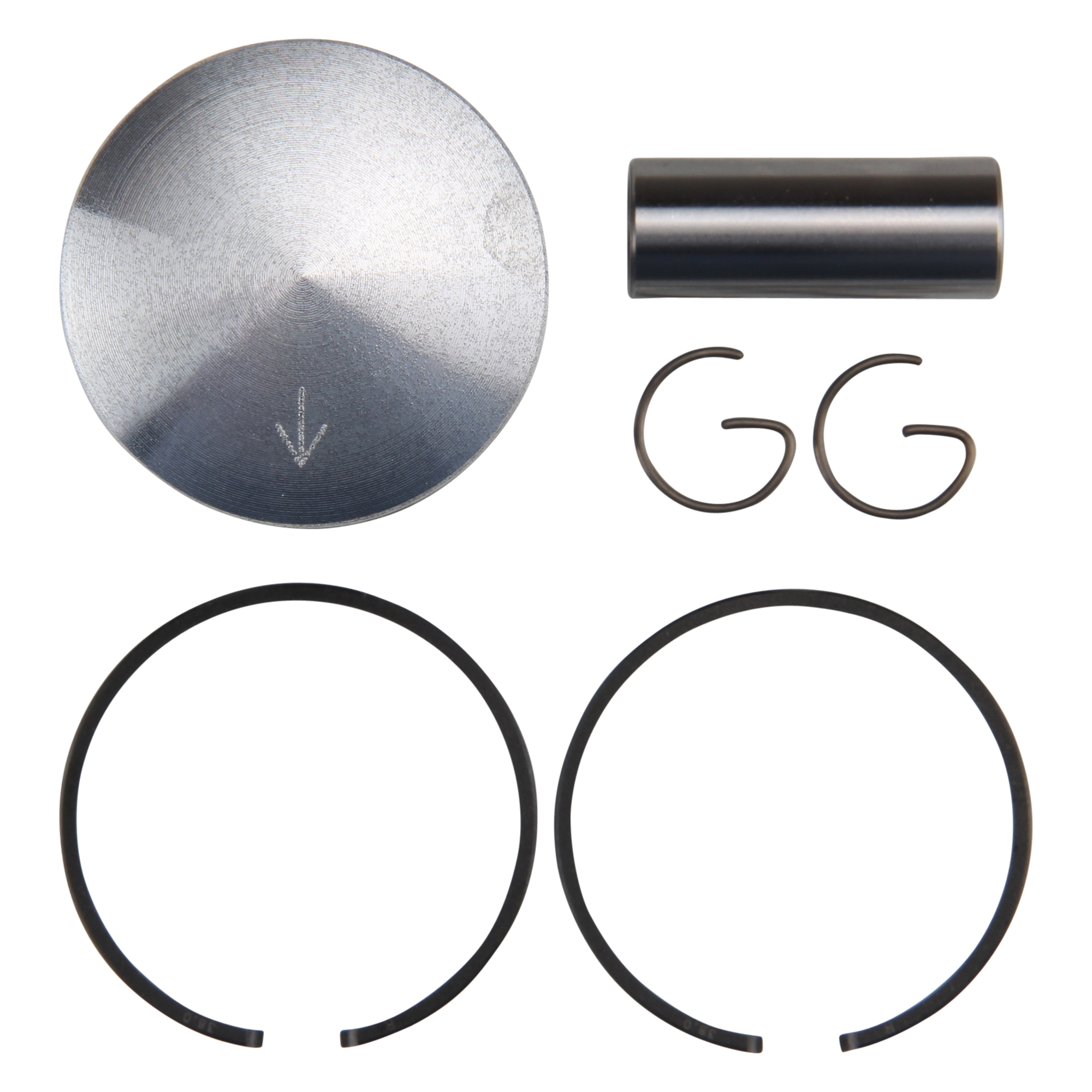

Scope of delivery:	Piston, Piston clips, Piston pin, Piston rings
Dimension E (piston pin diameter):	12 mm
Tuning & Styling Part:	No
Vintage part:	Yes
Cylinder bores:	38 mm
Bolt diameter:	12 mm
Bolt length:	31 mm
Color:	Silver
Piston diameter:	38 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	102048
Country and region of manufacture:	China
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston rings + piston pin + piston clips
Manufacturer warranty:	2 years
Material:	Aluminum alloy
Suitable for:	50 cc
