Preview: Unterbrecher Kontakt Kondensator Zündkerze NGK B6HS Zündung Hercules Prima M 2 3 4 5 Optima Jogging Sachs 504 505 (166446)

Unterbrecher Kontakt Kondensator Zündkerze NGK B6HS Zündung Hercules Prima M 2 3 4 5 Optima Jogging Sachs 504 505 (166446)

Breaker Contact Capacitor Spark Plug NGK B6HS Ignition Hercules Prima M 2 3 4 5 Optima Jogging

Rate

€19.90 *

Prices incl. VAT plus shipping costs

Unfortunately, this item is already sold out due to high demand.

Further variants / accessories

Hercules Prima M 2 3 4 5 Zündkerze NGK B6HS Stecker Kabel Zündkontakt Kondensator Zündung Optima Sachs 504 505

Unterbrecher Kontakt Kondensator Zündkerze NGK B6HS Zündung Hercules Prima M 2 3 4 5 Optima Jogging Sachs 504 505

Item no: 166446
EAN: 4251048896537
Manufacturer: Citomerx
Manufacturer no.: 166446

Traditional brand Hercules! Here you will find your suitable spare part! DESCRIPTION: Until... more

Close menu

Traditional brand Hercules! Here you will find your suitable spare part!

DESCRIPTION:
Until the 1990s, the Nuremberg Hercules factories manufactured mopeds, mopeds and mokicks. Hercules was one of the best known and most established two-wheeler brands in the Nuremberg motorbike industry. The company was founded in 1886 by Carl Marschütz under the company name "Velozipedfabrik Carl Marschütz & Co".
"To get the spark back" - Renew the ignition of your Hercules Prima, M, Jogging, Hobby Rider or Optima with this set! Due to the design, the breaker contact, the capacitor and the spark plug are subject to a high degree of wear. This can lead to delayed ignition and in the worst case to misfiring. Therefore, these components should be checked regularly and replaced if necessary. In this set, you will receive the matching ignition cable and the matching spark plug connector in addition to the components mentioned.
Your matching spare part is just one click away!

TECHNICAL DATA:
Ignition contact breaker
- ignition contact breaker for Zündapp, Kreidler, Hercules, Puch
- suitable for mopeds, mopeds, mokicks with BOSCH ignition

Ignition cable
- original equipment quality from Beru
- 7mm diameter
- PVC sheath, reinforced with glass fibre
- high voltage resistant up to 38000 Volt
- heat resistant up to 220 degrees
- water-repellent
- highly flexible even at extreme cold

Ignition capacitor
- Ignition capacitor for mopeds, mopeds and mokicks
- diameter: 18mm
- length: 23mm
- for vehicles from Hercules, Kreidler, Zündapp, Puch with Bosch ignition

Spark plug
- TYPE B6HS
- manufacturer-no. 4510
- not suppressed
- Width across flats SW21 (20.8 mm)
- Thread M14 (14.0 mm)
- Thread length 12.7 mm
- Electrode gap 0.7 mm
- Contact ignition cable M4- thread with screw-on SAE- nut

Spark plug connector
- Top quality from NGK, the world's leading manufacturer of spark plugs and spark plug connectors
- for clipping onto the upper thread of the spark plug
- the hexagon of the spark plug remains free, therefore size does not matter
- for spark plugs with an insulator diameter up to 14 mm
- for ignition cables up to 8 mm thick
- 90° angled
- colour: black
- 5 kilo ohm interference suppressed by high-quality ceramic element
- insulated with phenolic resin
- with special waterproof silicone seal
- suitable for many motorbikes, scooters, mopeds, mokicks and mopeds

COMPARABLE WITH:
Spark plug
- AC Delco 425F, 425Z, 42F, 42FF, 43F, 44F, 46F, M43FF, R44F
- Accel 156
- Autolite 2655, 4093, 413, 414, 424, 425, XS4093
- Beck Arnley 176-5031
- Beru 0001400701, 0001435705, 14-7A, 14-7AU, 14-XAU, 14X-AU, 14Z-6A2, 175/14, 190/14Z, D175/14, Z 57, Z 85, Z 57, Z 85, Z57, Z85
- Bosch 0241235607, 0241240603, 0242235533, W175T1, W175Z1, W6AC, W7A, W7A0, W7AC, W7AO, W7AO0, W7AP, W8AC, WR7AC, WR7AP
- Bosch stk 7502, 7596
- Brisk N15, N15C, N17, N17C
- Carlton 71050, C7S
- Champion 306, 5933, L10, L10S, L7, L7J, L82, L82C, L85, L85C, L86, L86C, L86CC, L87C, L9J, OE037, OE037/T10, OE096, OE096/T10, RL86C
- Champion stk 306, 811, 830
- Citroen 95605398, AM212207A
- Daihatsu 90048-51022-000, 9004851021000
- Denso 3073, 5378, 6054, D58, IWF20, IWF22, TR20, W16FS-U, W20FS, W20FS-U, W20FSR-U, W20FSU, WF20TT
- Denso stk 3034, 3073
- Enker F75C
- Eyquem 700, 700 MOTO, 700MOTO, 70M, 755, 755 MOTO, 755M, 755MOTO, 75M, 775X
- Fuji 065-01400-31, 065-01400-60
- General Motors 5612125, 5612394, 5613229, 5613525, 5613658
- Gutbrod 000.80.071
- Hitachi M45W, M45X
- Honda 98076-56710, 98076-56711, 98076-56724, 98076-56740, 98076-56741
- Iskra F70, F75S
- Insulator 7A, M14-175, M14175
- Kawasaki 92070007, 920702116, E92070007, E920702116
- Kioritz 159010-04120
- KLG F75
- Kubota 13451-6771-6, 13451-67710, 13451-67716, 13582-6771-1, 13582-67711
- Lodge CC14, H, HN
- Magneti Marelli 062000611304, CW225A, CW67NJ, CW6N, CW6NJ, CW7N, CW7NJ, CWC67NJ, CWC6NJ, CWC7NJ, F7CN, FC7N
- Marchal Valeo 35, 35 / 36D, 35 / 36P, 35 / 36R, 35/36D, 35/36P, 35/36R, 35B, 35M, 35P
- Mazda 0190 18 110, 0190-18-110, 019018110
- MBK 9079Q-0415500
- Mercruiser 33-306, 33-82370M, 33-82370M1
- Mercury 82370M1
- Mighty M4E4
- Mitsubishi MS 851 133, MS851133
- Motorcraft AE3, AE3C, AE3X, AES4C, AV3CU
- Motorcraft stk 41
- Napa X531
- NGK stk 7534
- OMC 502177
- Oregon ON17C
- PAL (Brisk) 14-8, N17C, N7
- Prestolite 1.40E+004, 14E3
- PSA Peugeot Citroën 7567.57, 756757, 95605398, AM212207A
- Renault 77 01 366 533, 7701366533
- Splitfire SF409C
- Subaru 82054-1810, 82054-1812, 820541810, 820541812
- Suzuki 09482-00095, 09482-00190
- Tacti V91103073
- Torch E7C
- Toyota 90098-20645
- Unipart GSP2049, GSP550
- Valley Forge 134
- XL E6C
- Yamaha 90890-78094, 94700-00039, 94701 00039, 94701-00039, 9470100039, 94702-00039, 94702-00391-0, 94702003910, 94703-00039
- Yanmar 160110-78011

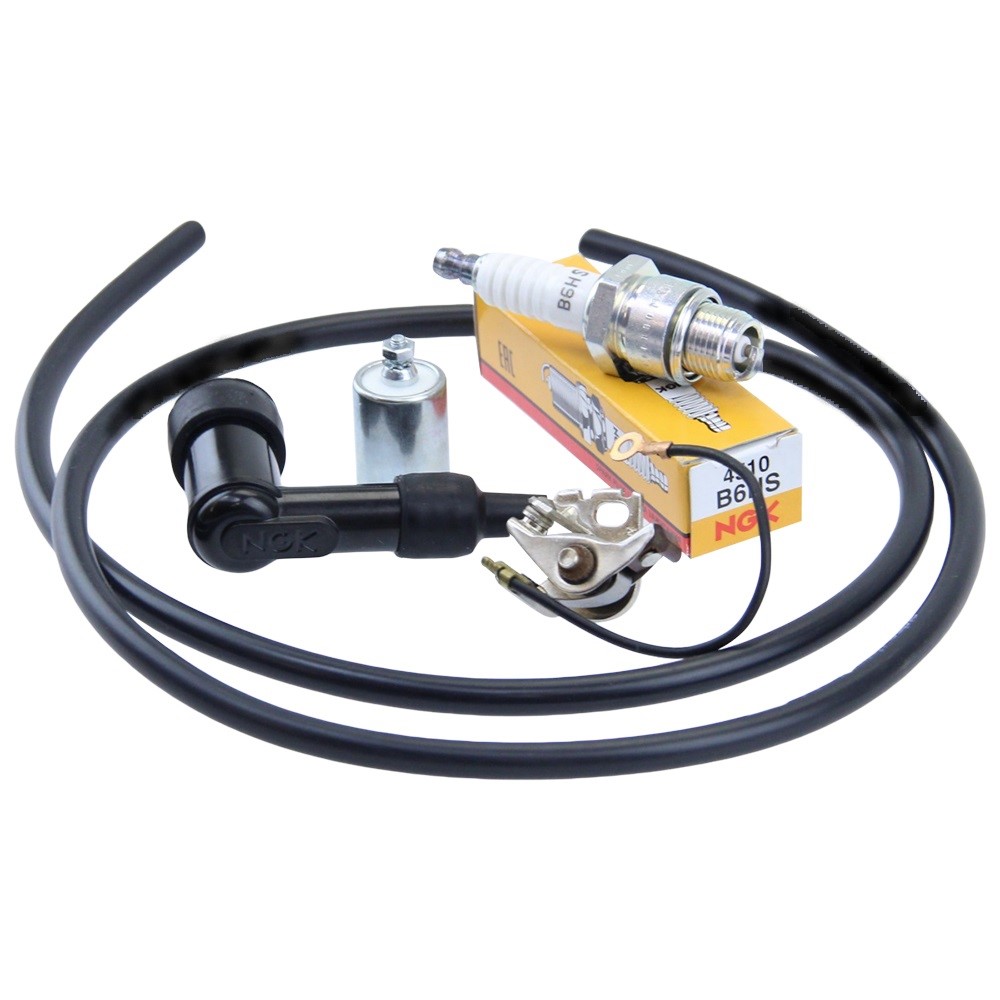

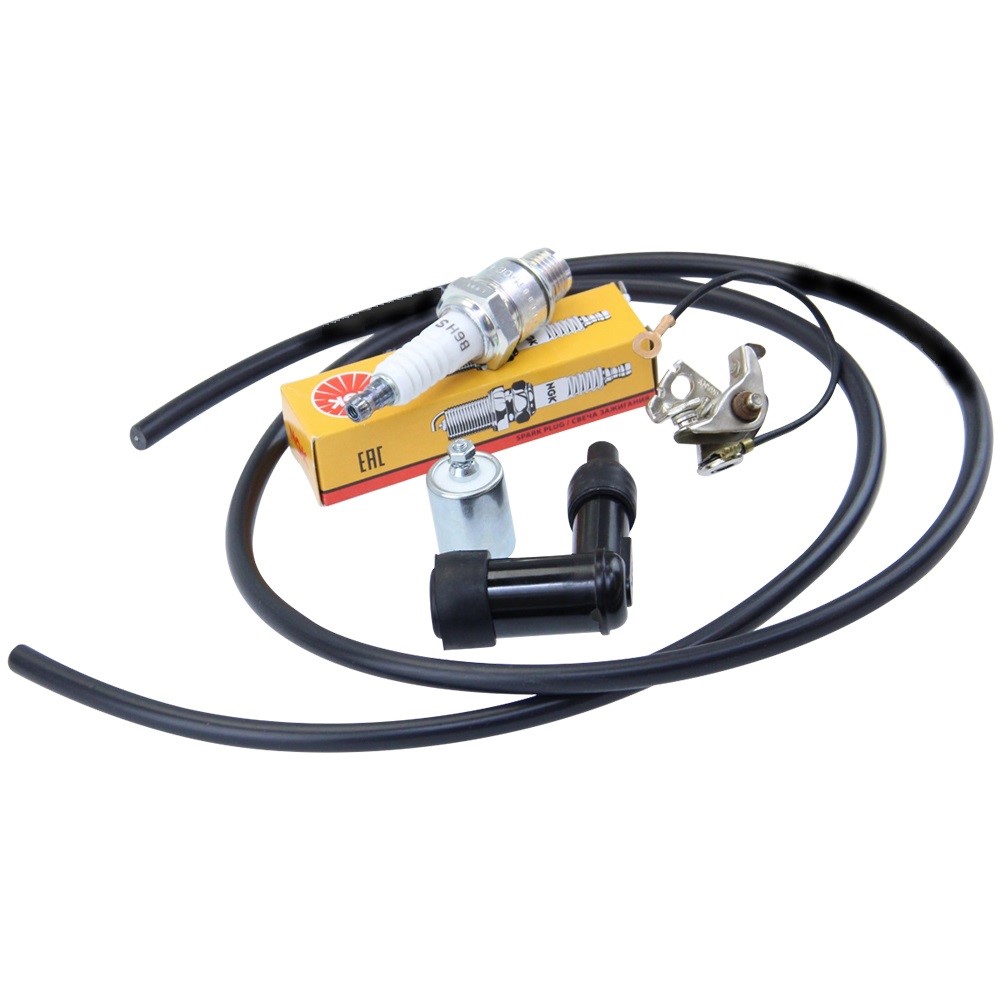

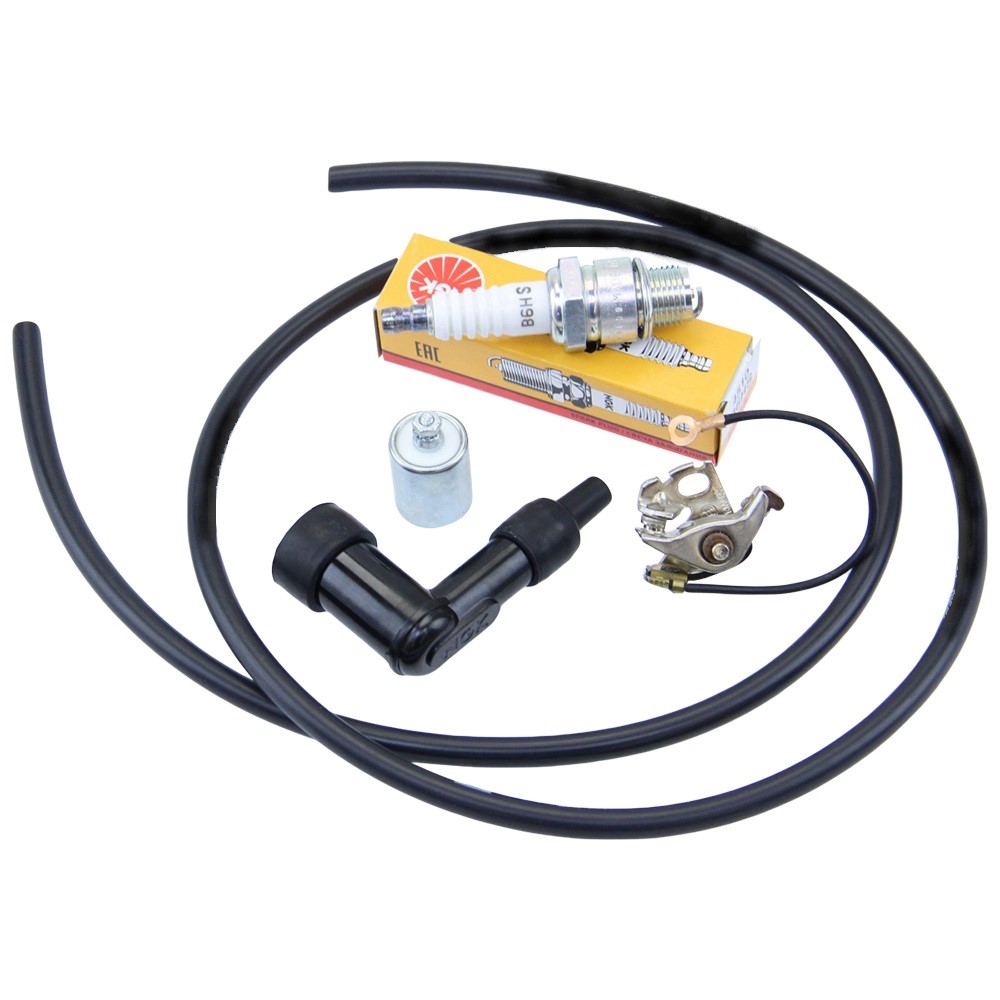

SCOPE OF DELIVERY:
✔ 1x ignition contact breaker
1x ignition cable
✔ 1x ignition capacitor
1x spark plug
✔ 1x spark plug connector

Capacitor length:	23mm
Ignition cable:	Durchmesser 7mm // Länge 1 Meter
Condenser screw:	M3
Ignition cable 1:	hitzebeständig bis 220 Grad
Reference number:	1.217.013.021
GTIN:	4251048896537
Spark plug:	Typ NGK B6HS // Schlüsselweite SW21
Plug connector:	"Kunststoff" // entstört mit 5 kOhm
Spark plug 1:	Gewinde M14 // Elektrodenabstand 0,7mm
Plug connector 1:	90° abgewinkelt // Typ NGK LB05F
Condenser diameter:	18mm
Manufacturer number:	166446
Manufacturer warranty:	2 years
Suitable for:	Bosch ignition
