Hercules Prima M 2 3 4 5 6 sprocket 40 teeth sprocket 11Z chain chain chain tensioner safety set
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 166346
- EAN: 4251048895530
- Manufacturer: Citomerx
- Manufacturer no.: 166346
The Nuremberg Hercules factories were an essential part of the Nuremberg motorcycle industry. However, motorcycle production did not begin until 1928, 42 years after Carl Marschütz founded the company. Also through the cooperation with Fichtel & Sachs as an engine supplier, Hercules established itself in the market segment of light motorcycles up to 200 cm³ and bicycles with auxiliary engines.
This chain set is suitable for many Hercules mopeds and mopeds. It contains all parts necessary to replace the chain drive. The 11 chain sprocket is attached to the engine and connected to the rear wheel via the chain. The supplied chain is already cut to the right length and can therefore be mounted directly on the vehicle. With the help of the two chain tensioners the chain is brought to the correct tension.
Please note that changing the transmission ratio may invalidate the type approval of your vehicle.
Do something good for your vehicle and buy the right spare part from us now!
TECHNICAL DATA:
- Chain wheel fuse set 9 pieces
- Chain tensioner set 8 pieces
- Nut: M12 x 1
- Washer: M12
- Pitch: 415
- Number of teeth Sprocket: 11
- Internal dimension pinion: approx. 12 x 15 mm
- Number of teeth sprocket: 40
- bolt circle: 66 mm
- Chain: 102 links including clip chain lock

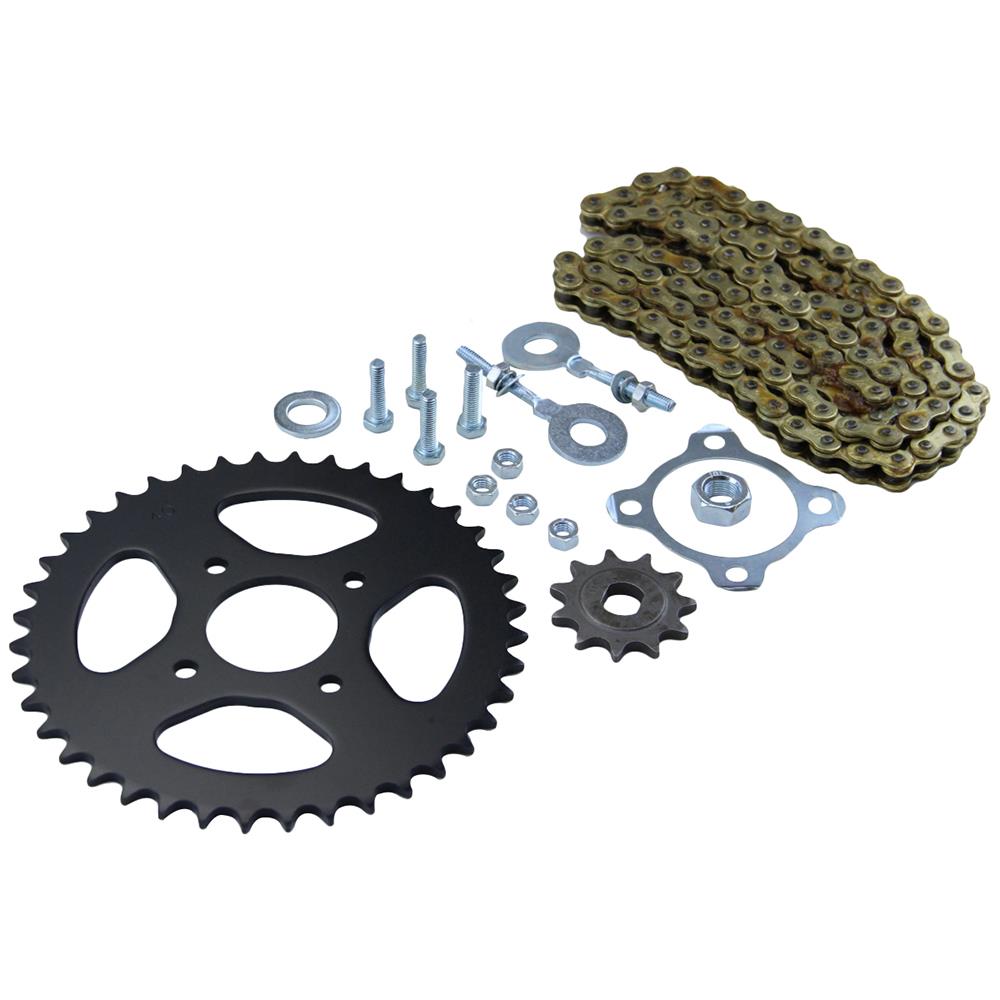

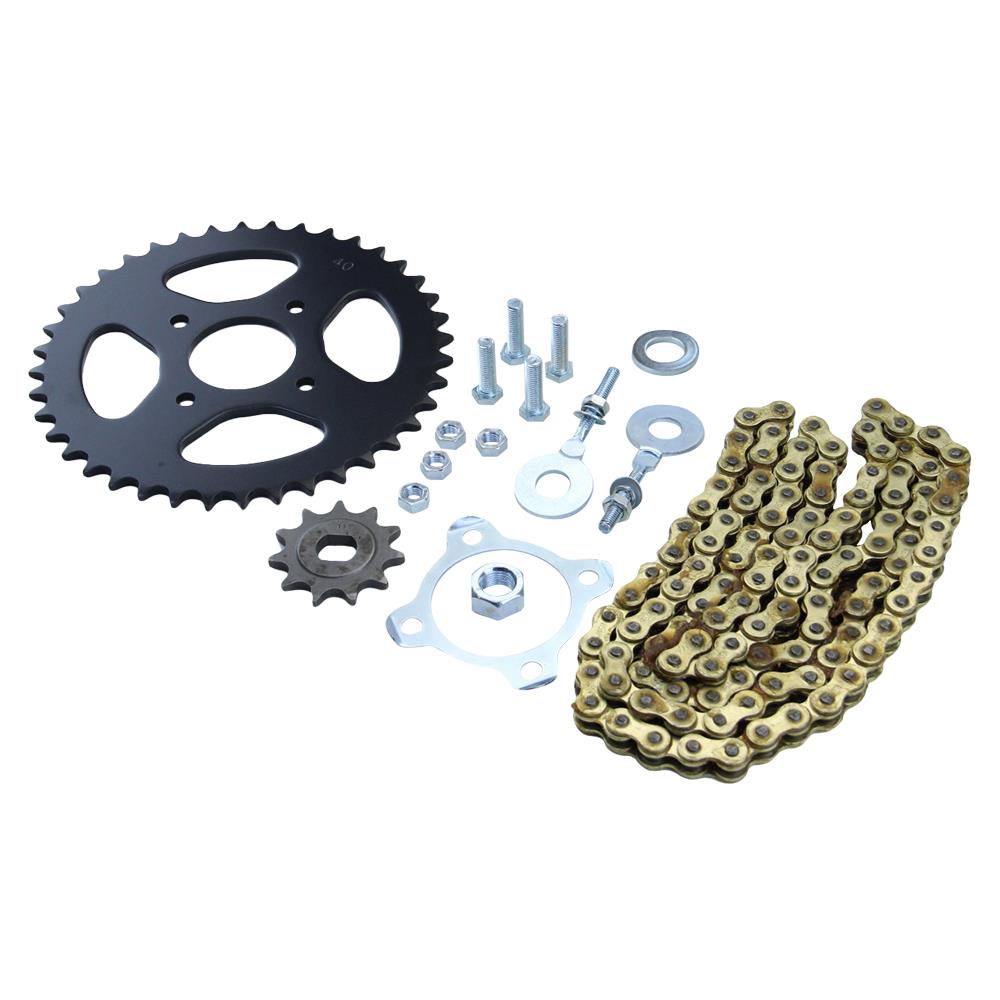

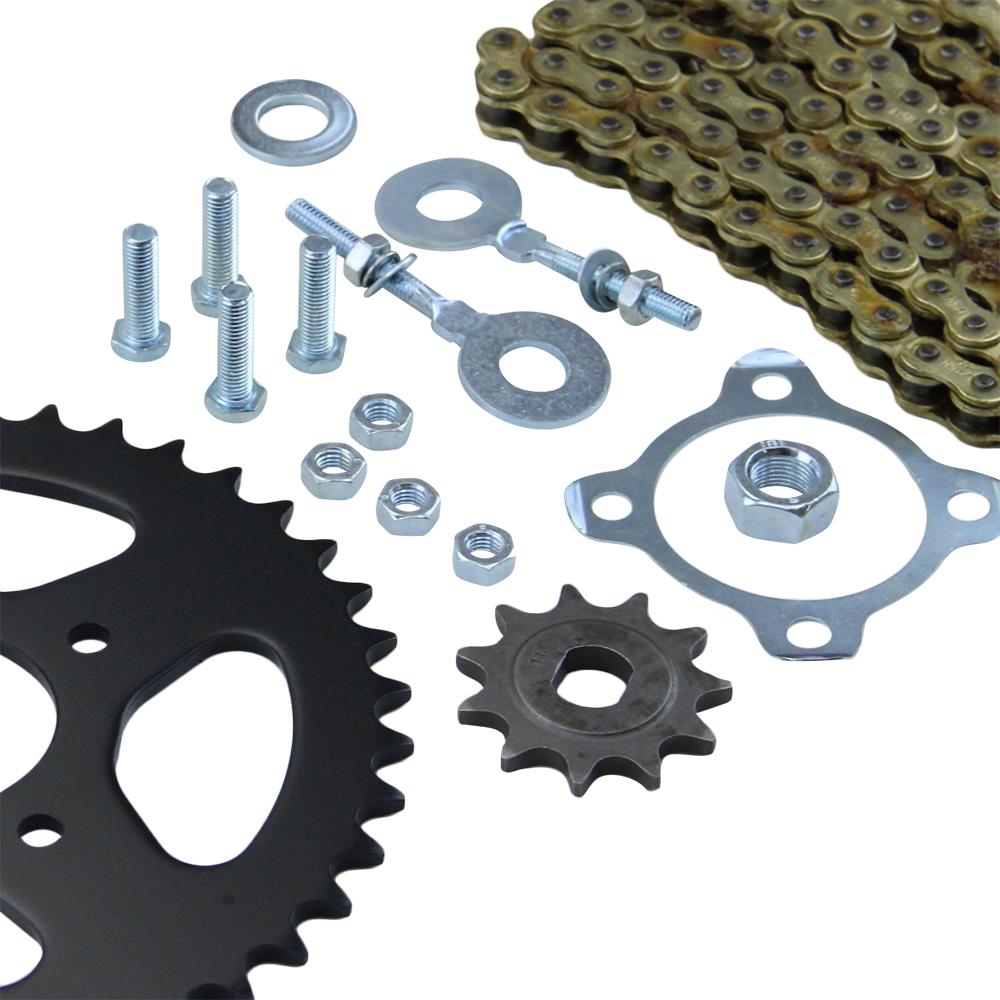

SCOPE OF DELIVERY:
✔ 1x chain wheel lock set
✔ 1x chain tensioner set
✔ 1x nut
✔ 1x washer
✔ 1x sprocket 11Z
✔ 1x chain wheel 40Z
✔ 1x chain
| Division: | 415 |
| Number of pinions: | 11 |
| Mother: | M12 x 1 |
| Washer: | M12 |
| Inside dimension pinion: | ca. 12 x 15 mm |
| Sprocket locking set: | 9-teilig |
| Chain tensioner set: | 8-teilig |
| GTIN: | 4251048895530 |
| Number of teeth Sprocket: | 40 |
| Chain: | 102 Glieder inkl. Clip-Kettenschloss |
| Bolt circle: | 66 mm |
| Manufacturer number: | 166346 |
| Product type: | Chain set |
| Manufacturer warranty: | 2 years |
"Fast goods", is the translation of Citomerx and this is also the motto of the company from Bavaria, which offers numerous spare parts for two- and four-stroke scooters. Speed is the declared goal for both the vehicles and the delivery of the goods, as well as a reasonable price-performance ratio for the standard, racing or high-end products. The range includes almost everything that the scooter rider needs: from exhaust systems and batteries to cylinder kits. An additional plus point is the know-how of the Citomerx crew, acquired over years of experience.
Hercules
HR1 25 Hobby Rider Bj 1972-1975 | HR2 25 Hobby Rider Bj. 1974-87 | Jogging 25 2 Gang Bj. 1984-1986 | M 25 1 1-Gang Automatik Bj72-77 | M 25 2 1-Gang Automatik Bj72-77 | M 25 3 1-Gang Automatik Bj72-74 | M 25 4 Bj. 1972-1974 | M 25 4S Bj. 1972-1974 | M 25 5 2 Gang Bj. 1974 | M 25 5S 2 Gang Bj. 1974 | MX-1 25 2 Gang Bj. 1986-1995 | Optima 50 2 Gang Sachs Bj. 1994 | Optima 50 3 2 Gang Bj. 1979-80 | Optima 50 3S 2 Gang Bj. 80-93 | P1 50 1-Gang Automatik Bj.72-77 | P3 50 Bj. 1974-1979 | PRIMA 25 2(S) 1-GANG AUTOMATIK | Prima 25 2N 1-Gang Automatik | PRIMA 25 3(S) 2-GANG BJ. 82-94 | Prima 25 4 1-Gang Automatik | Prima 25 4N Automatik Bj. 78-87 | Prima 25 4S Automatik Bj. 78-87 | Prima 25 4SL Bj. 1981 | PRIMA 25 5 2-GANG HAND BJ. 78-95 | Prima 25 5N 2 Gang Hand Bj78-87 | PRIMA 25 5S 2 GANG HAND 1978-95 | Prima 25 5SL Bj. 1981 | Prima 25 6 2 Gang Hand Bj. 78 | Prima 25 S Automatik Bj. 78-87 | PRIMA 25 SX/GT 3 GANG BJ. 83-94 |
