Hercules Prima M 2 3 4 5 6 sprocket 47 teeth sprocket 11Z chain chain chain tensioner safety set
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Further variants / accessories
- Item no: 166351
- EAN: 4251048895585
- Manufacturer: Citomerx
- Manufacturer no.: 166351
Hercules is probably a well-known name to every owner of a classic car two-wheeler. The company was founded in 1886 by Carl Marschütz and manufactured bicycles until 1928. It was not until 1928 that the production of light motorcycles under 200 cccm³ was worthwhile again. Since that time, the Hercules factories have been using foreign motors from Fichtel & Sachs.
The drive train transfers the torque from the engine to the rear wheel of your moped. This set contains all the parts needed to replace the complete drive train. The supplied 11 sprocket is attached to the engine and connected via the chain (already cut to fit) to the sprocket, which is attached to the rear wheel with four screws and a locking plate. The supplied chain tensioners provide the appropriate tightening of the chain.
Please note that changing the gear ratio can lead to the expiration of the operating license of your vehicle.
Your suitable spare part is only one click away!
TECHNICAL DATA:
- Sprocket locking set 9 pieces
- Chain tensioner set 8 pieces
- Nut: M12 x 1
- Washer: M12
- Pitch: 415
- Number of teeth Sprocket: 11
- Internal dimension pinion: approx. 12 x 15 mm
- Number of teeth sprocket: 47
- bolt circle: 66 mm
- Chain: 106 links incl. clip chain lock

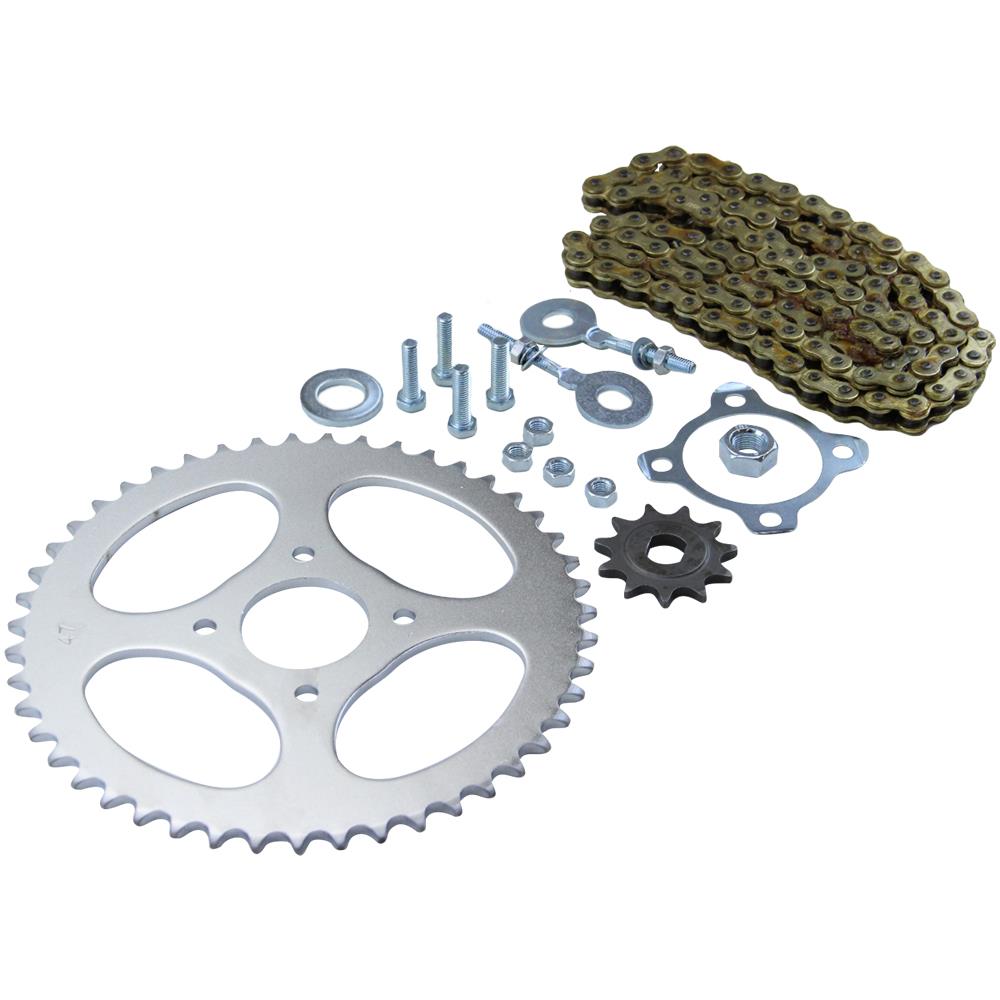

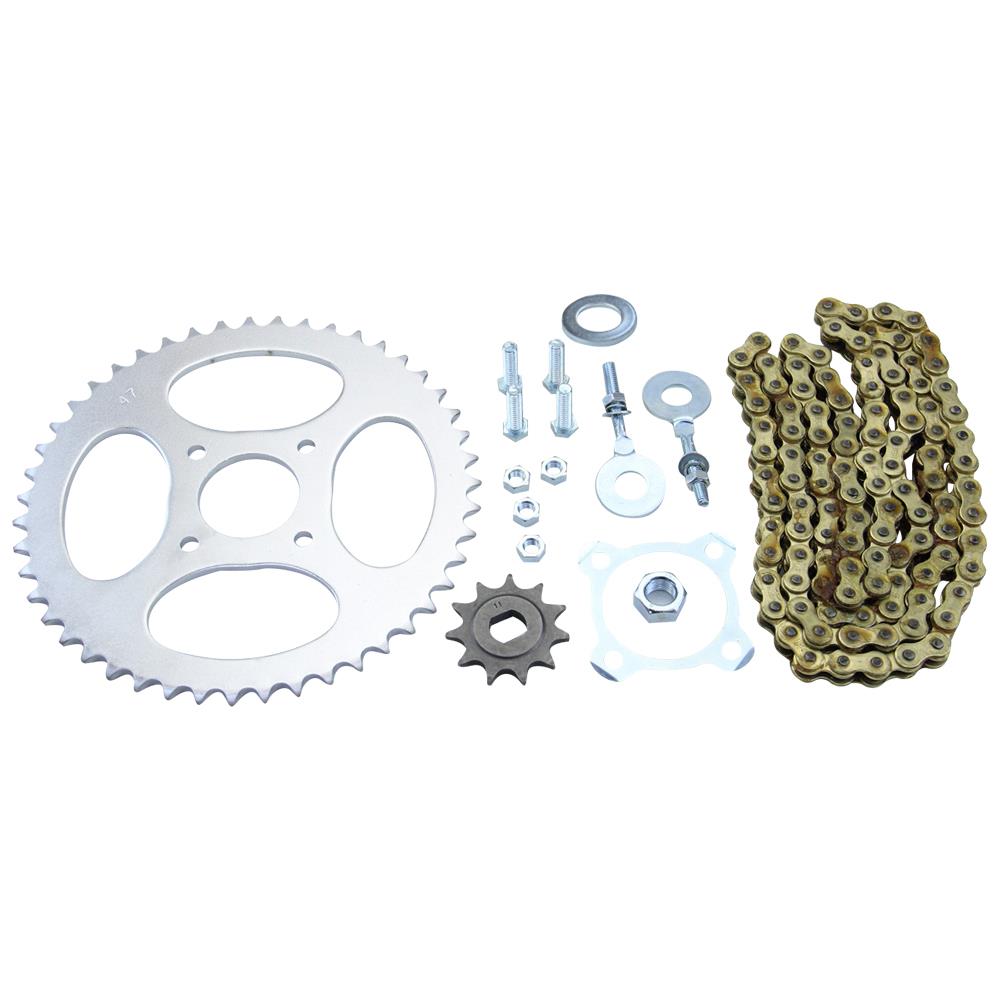

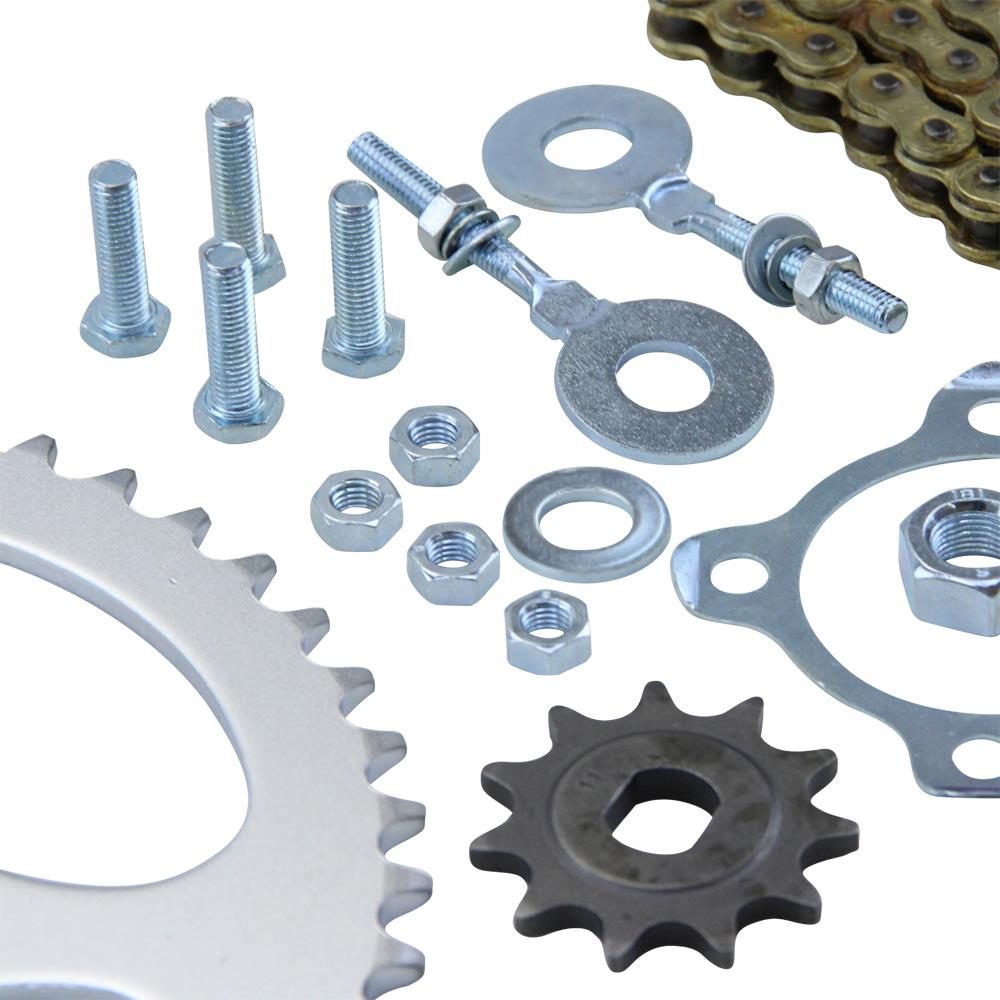

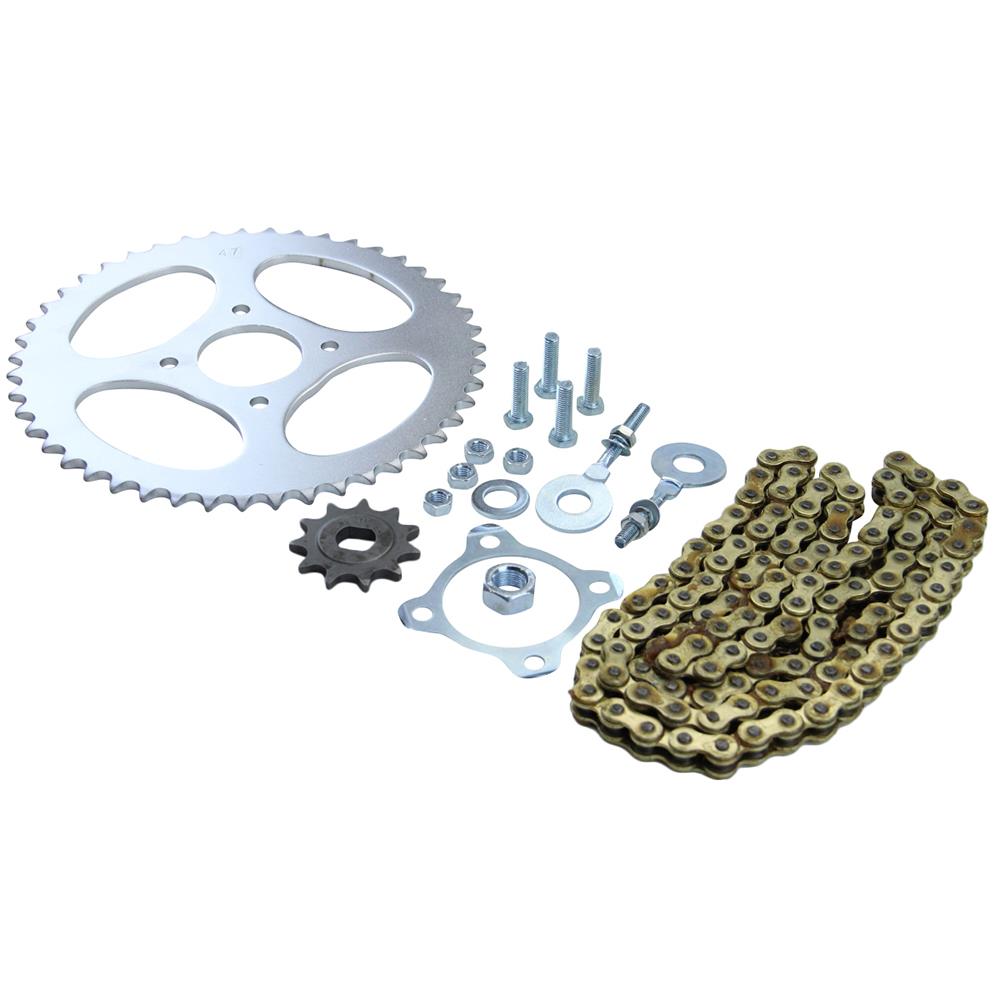

SCOPE OF DELIVERY:
✔ 1x chain wheel lock set
✔ 1x chain tensioner set
✔ 1x nut
✔ 1x washer
✔ 1x sprocket 11Z
✔ 1x chain wheel 47Z
✔ 1x chain
| Division: | 415 |
| Number of pinions: | 11 |
| Mother: | M12 x 1 |
| Washer: | M12 |
| Inside dimension pinion: | ca. 12 x 15 mm |
| Chain: | 106 Glieder inkl. Clip-Kettenschloss |
| Sprocket locking set: | 9-teilig |
| Chain tensioner set: | 8-teilig |
| GTIN: | 4251048895585 |
| Number of teeth Sprocket: | 47 |
| Bolt circle: | 66 mm |
| Manufacturer number: | 166351 |
| Product type: | Chain set |
| Manufacturer warranty: | 2 years |
"Fast goods", is the translation of Citomerx and this is also the motto of the company from Bavaria, which offers numerous spare parts for two- and four-stroke scooters. Speed is the declared goal for both the vehicles and the delivery of the goods, as well as a reasonable price-performance ratio for the standard, racing or high-end products. The range includes almost everything that the scooter rider needs: from exhaust systems and batteries to cylinder kits. An additional plus point is the know-how of the Citomerx crew, acquired over years of experience.
Hercules
HR1 25 Hobby Rider Bj 1972-1975 | HR2 25 Hobby Rider Bj. 1974-87 | Jogging 25 2 Gang Bj. 1984-1986 | M 25 1 1-Gang Automatik Bj72-77 | M 25 2 1-Gang Automatik Bj72-77 | M 25 3 1-Gang Automatik Bj72-74 | M 25 4 Bj. 1972-1974 | M 25 4S Bj. 1972-1974 | M 25 5 2 Gang Bj. 1974 | M 25 5S 2 Gang Bj. 1974 | MX-1 25 2 Gang Bj. 1986-1995 | Optima 50 2 Gang Sachs Bj. 1994 | Optima 50 3 2 Gang Bj. 1979-80 | Optima 50 3S 2 Gang Bj. 80-93 | P1 50 1-Gang Automatik Bj.72-77 | P3 50 Bj. 1974-1979 | PRIMA 25 2(S) 1-GANG AUTOMATIK | Prima 25 2N 1-Gang Automatik | PRIMA 25 3(S) 2-GANG BJ. 82-94 | Prima 25 4 1-Gang Automatik | Prima 25 4N Automatik Bj. 78-87 | Prima 25 4S Automatik Bj. 78-87 | Prima 25 4SL Bj. 1981 | PRIMA 25 5 2-GANG HAND BJ. 78-95 | Prima 25 5N 2 Gang Hand Bj78-87 | PRIMA 25 5S 2 GANG HAND 1978-95 | Prima 25 5SL Bj. 1981 | Prima 25 6 2 Gang Hand Bj. 78 | Prima 25 S Automatik Bj. 78-87 | PRIMA 25 SX/GT 3 GANG BJ. 83-94 |
